Vehicle Exploded View - VESPA VESPA 946 125 VESPA 946 125 ABS E5 CD 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

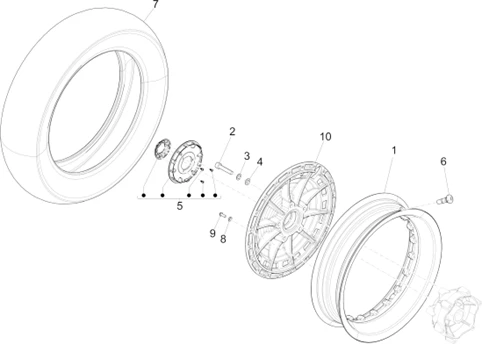

Suspensions - roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1203/VESPA_946_125_ABS_E5_CD_2021_(EMEA)_04.11.png)
1 |
1C005590-WHEEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/7/img/65747.jpg)
2 |
SCREW BTR (8X40) OEM PIAGGIO COMMON A LA RANGE-149104 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
3 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/2/img/65422.jpg)
4 |
WASHER PLATE (8. 2X13X2) OEM PIAGGIO COMMON A LA RANGE-016604 More informationQuantity required : 5 |
||||||
|
5 |
1C005597-COVER HUB COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
6 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-597679 More informationQuantity required : 1 |
||||||
|
7 |
CM319109-FRONT TYRE 120 70 12 More informationQuantity required : 1 |
||||||
|
8 |
003055-WASHER More informationQuantity required : 20 |
||||||
|
9 |
669057-BOLT More informationQuantity required : 20 |
||||||
|
10 |
1C005589-HUB DE WHEEL More informationQuantity required : 1 |
