Vehicle Exploded View - VESPA VESPA 946 125 VESPA 946 125 ABS E5 CD 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

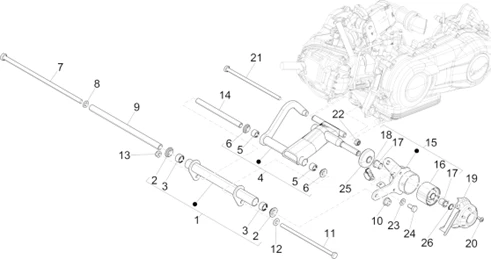

Suspensions - roues : 04.01 BRAS OSCILLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1203/VESPA_946_125_ABS_E5_CD_2021_(EMEA)_04.01.png)
1 |
668632-OEM MOPED SWINGARM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/5/5/img/82455.jpg)
2 |
BUSH DE OEM MOPED SWINGARM OEM PIAGGIO COMMON A LA RANGE-598917 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/6/img/67416.jpg)
3 |
CAGE A AIGUILLES DE OEM MOPED SWINGARM OEM PIAGGIO 125-250-300 VESPA GTS, 125 VESPA SPRINT, PRIMAVERA, 500 X9, BEVERLY-600161 More informationQuantity required : 2 |
||||||
|
4 |
1C006047-OEM MOPED SWINGARM COTE ENGINE COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/5/img/67335.jpg)
5 |
BUSH/GASKET ARTICULATION OEM MOPED SWINGARM OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-597317 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/0/4/img/67004.jpg)
6 |
CAGE A AIGUILLES DE OEM MOPED SWINGARM OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA SPORT-CITY, SR MAX/GILERA NEXUS, RUNNER-56127R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/3/1/9/img/82319.jpg)
7 |
SPINDLE/SCREW OEM MOPED SWINGARM OEM PIAGGIO 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125-250-300 VESPA GTS-597914 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/4/6/img/77146.jpg)
8 |
WASHER DE OEM MOPED SWINGARM OEM PIAGGIO VESPA-266845 More informationQuantity required : 1 |
||||||
|
9 |
1C000439-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
10 |
NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740 More informationQuantity required : 1 |
||||||
|
11 |
598237-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
12 |
WASHER PLATE (10. 3X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-178790 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
13 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/0/0/2/img/76002.jpg)
14 |
SPACER ARM OCSILLANT OEM PIAGGIO 125 LIBERTY, PRIMAVERA, SPRINT 2015 >-1C000440 More informationQuantity required : 1 |
||||||
|
15 |
668728-PATTES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/6/img/66116.jpg)
16 |
RUBBER MOUNT ENGINE OEM PIAGGIO 125-250 MP3 2007 >, 125 X8 2004 >, X9 2003 >, X-EVO 2007 >, X10 2012 >, VESPA GTS 2007 >/GILERA 125-250 NEXUS 2007 >, RUNNER 2005 >/APRILIA 125 SR-MAX 2011 >-272750 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/6/img/66126.jpg)
17 |
BUSH FOR RUBBER MOUNT DE OEM MOPED SWINGARM ENGINE OEM PIAGGIO COMMON A LA RANGE-273460 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/5/img/72905.jpg)
18 |
CLIPS ATTACHE FASCEAU ORINE PIAGGIO COMMON A LA RANGE-CM006903 More informationQuantity required : 1 |
||||||
|
19 |
669251-COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
20 |
SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301 More informationQuantity required : 2 |
||||||
|
21 |
598237-SCREW More informationQuantity required : 1 |
||||||
|
22 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
23 |
WASHER EVENTAIL (10, 5) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-012535 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/4/img/67354.jpg)
24 |
BOLT OEM PIAGGIO-597893 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/2/8/2/img/149282.jpg)
25 |
RUBBER MOUNT ENGINE OEM PIAGGIO COMMON A LA RANGE-1C002624 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/4/img/63814.jpg)
26 |
CLIPS/CIRCLIPS (14. 6) OEM PIAGGIO COMMON A TOUTE LA RANGE-006416 More informationQuantity required : 1 |
