Vehicle Exploded View - DERBI VARIANT COURIER 50 VARIANT COURIER 2007 E2
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

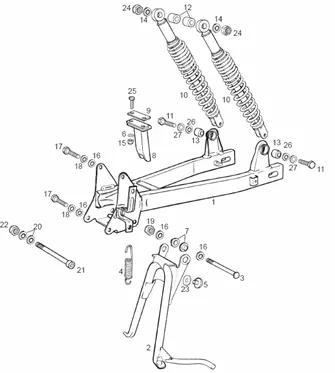

Suspensions - roues : 2 FOURCHE ARRIERE - AMORTISSEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1062/VARIANT_COURIER_2007_E2_2.png)
1 |
00F00305011 - BRAS OSCILLANT NOIR }START} More informationQuantity required : 1 |
||||||
|
2 |
00F00805011A - SOUS-ENSEMBLE CHEVALET More informationQuantity required : 1 |
||||||
|
3 |
00F00810071 - AXE DE BEQUILLE. START More informationQuantity required : 1 |
||||||
|
4 |
00F00800081-SPRING DE STAND More informationQuantity required : 1 |
||||||
|
5 |
|
||||||
|
6 |
BOULON S03105900 |
||||||
|
7 |
00F00800171-SPACER SHAFT OF STAND More informationQuantity required : 1 |
||||||
|
10 |
00F01507192 - AMORTISSEUR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/1/img/63701.jpg)
11 |
SCREW TH (8X30) OEM PIAGGIO COMMON A LA RANGE-00012083001 More informationQuantity required : 1 |
||||||
|
12 |
|
||||||
|
13 |
00F01800141 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
14 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
15 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/6/img/63596.jpg)
16 |
WASHER PLATE (8. 4X15. 8X1. 5) OEM PIAGGIO COMMON A LA RANGE-00000031080 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/7/img/65647.jpg)
17 |
SCREW TH (8X25) OEM PIAGGIO COMMON A LA RANGE-031120 More informationQuantity required : 1 |
||||||
|
18 |
00000033080-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/5/img/63715.jpg)
19 |
NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-00023108000 More informationQuantity required : 1 |
||||||
|
20 |
00F02500981 - RONDELLE INF.MOTEUR More informationQuantity required : 1 |
||||||
|
21 |
00F03002271 - AXE FIX. AV. MOT. More informationQuantity required : 1 |
||||||
|
22 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/0/img/63730.jpg)
23 |
WASHER WHEEL (DIAMETRE 15) OEM PIAGGIO GILERA 50 50 SMT, RCR/DERBI 50 SENDA/APRILIA RS, RX, SX-00032015000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/3/img/63763.jpg)
24 |
NUT - FOR FRONT WHEEL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> ROUES A RAYONS -00232120032- More informationQuantity required : 1 |
||||||
|
25 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/8/img/63888.jpg)
26 |
WASHER PLATE (8. 4X10. 5X0. 8) OEM PIAGGIO COMMON A LA RANGE-00D02500271 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/1/img/63731.jpg)
27 |
WASHER CANNELE D8 OEM PIAGGIO COMMON A LA RANGE-00034000802 More informationQuantity required : 1 |
