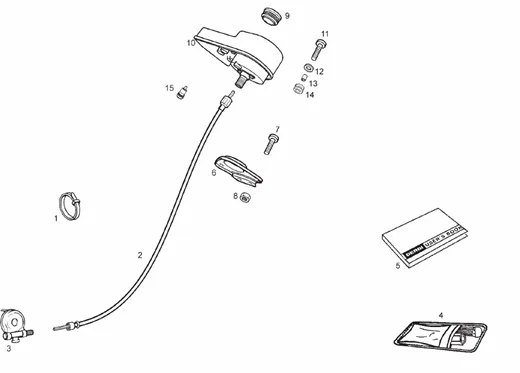

Châssis - parties plastiques - carrosseries : 12 INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1062/VARIANT_COURIER_2007_E2_12.png)
1 |
00A00900531 - COLLIER More informationQuantity required : 1 |
||||||
|
2 |
00F01608021-ENSEMB. CABLE-GAINE COMPTEURKM More informationQuantity required : 1 |
||||||
|
3 |
00F01602051 - ENSEMBLE RENVOI More informationQuantity required : 1 |
||||||
|
4 |
00A05100561 - TROUSE A OUTILS More informationQuantity required : 1 |
||||||
|
5 |
MANUAL DE INSTR.VARIANT COUR. ITTES. |
||||||
|
6 |
00H01501831 - PROTEGE CONTACT.ALLUM. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/4/img/63704.jpg)
7 |
SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
8 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060 More informationQuantity required : 1 |
||||||
|
9 |
00H01800751 - BOUCHON LOGEMENT AXE BASCULANT More informationQuantity required : 1 |
||||||
|
10 |
864188 - CTO.TABLIER VARIANT COUR.ITTES. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/3/img/63703.jpg)
11 |
SCREW CRUCIFORME (5X80) OEM PIAGIO COMMON A LA RANGE-00012152000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
12 |
WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/7/2/img/64572.jpg)
13 |
SPACER OEM PIAGGIO COMMON A LA RANGE-00H01600911 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/1/img/63881.jpg)
14 |
RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021 More informationQuantity required : 1 |
||||||
|
15 |
00G01602581-R-DOOR-LAMPES More informationQuantity required : 1 |
