Vehicle Exploded View - MOTO-GUZZI V9 850 Roamer 850 E5 ABS 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

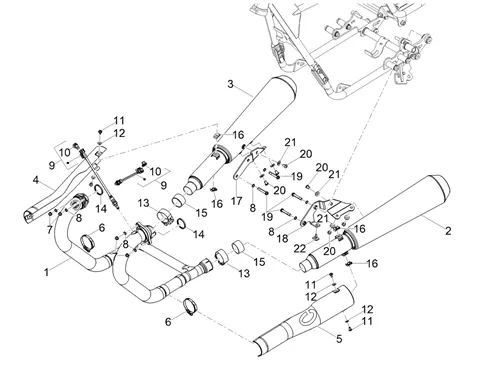

Moteur : 03.33 POT D''ÉCHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/980/V9_Roamer_850_E5_ABS_2021_(EMEA)_03.33.png)
1 |
2B009009 EXHAUST PIPES More informationQuantity required : 1 |
|||||||||
|
2 |
2B007696 - LEFT MUFFLER More informationQuantity required : 1 |
|||||||||
|
3 |
2B007697 - RIGHT MUFFLER More informationQuantity required : 1 |
|||||||||
|
4 |
2B007803 RH CHROME PLATED PROTECTOR WITH IP More informationQuantity required : 1 |
|||||||||
|
5 |
2B007802 LH CHROME PLATED PROTECTOR WITH IP More informationQuantity required : 1 |
|||||||||
|
6 |
2B008611 CLAMP D40 60 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/0/img/73550.jpg)
7 |
NUT FLANGE (M8) OEM PIAGGIO COMMON A LA RANGE-GU92660021 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
8 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 10 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/6/1/5/img/171615.jpg)
9 |
SONDE LAMBDA OEM PIAGGIO APRILIA, MOTO GUZZI, PIAGGIO, VESPA EURO5-1A014335 More informationQuantity required : 2 |
|||||||||
|
10 |
1A015201 - CLIP COUPLER More informationQuantity required : 2 |
|||||||||
|
11 |
884043-SCREW TBEI FL M6X12 PREIMPREGNATA More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/2/img/69132.jpg)
12 |
WASHER CRANTEE (6. 1X14X2. 1) OEM PIAGGIO COMMON A LA RANGE-834951 More informationQuantity required : 4 |
|||||||||
|
13 |
2B007833 EXHAUST CLAMP More informationQuantity required : 2 |
|||||||||
|
14 |
CYLINDER HEAD OUTLET GASKET "PIAGGIO GENUINE PART" APRILIA 1000-1100 RSV-4, TUONO V4/MOTO-GUZZI 750 V7, 850 V85, V9 -852090 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/5/5/7/4/img/175574.jpg)
15 |
GASKET OF SILENCER EXHAUST OEM MOTO GUZZI V7, V9 E5-2B007137 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
16 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 4 |
|||||||||
|
17 |
2B008234 RIGHT MUFFLER BRACKET BRACKET WITH IP More informationQuantity required : 1 |
|||||||||
|
18 |
2B008233 LEFT MUFFLER BRACKET BRACKET WITH IP More informationQuantity required : 1 |
|||||||||
|
19 |
2B004784-SCREW More informationQuantity required : 4 |
|||||||||
|
20 |
AP8152055-SCREW More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.jpg)
21 |
WASHER 8, 4X15X1, 8 COMMON A LA RANGE MOTO GUZZI/APRILIA-GU95008208 More informationQuantity required : 6 |
|||||||||
|
22 |
AP8120455-SILENT BLOCK STAND More informationQuantity required : 1 |
|||||||||
