Vehicle Exploded View - MOTO-GUZZI V9 850 Roamer 850 E5 ABS 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

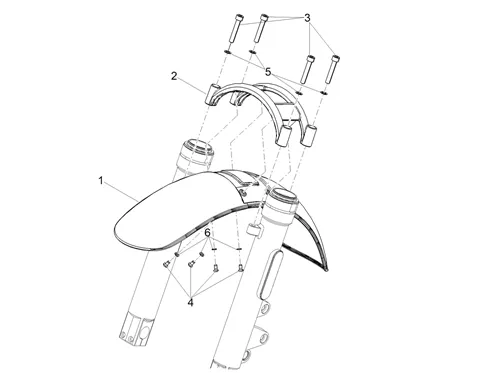

Carrosserie : 02.03 GARDE-BOUE AV.-EMBASEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/980/V9_Roamer_850_E5_ABS_2021_(EMEA)_02.03.png)
1 |
2H004342000XHC FRONT MUDGUARD More informationQuantity required : 1 |
||||||
|
1 |
2B001141-GUARD-MUD FRONT More informationQuantity required : 1 |
||||||
|
2 |
2B001147-BRACKET G-MUD AV More informationQuantity required : 1 |
||||||
|
3 |
SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-GU98690445 More informationQuantity required : 4 |
||||||
|
4 |
2B004824 SCREW More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
5 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/9/0/img/132690.jpg)
6 |
WASHER GROWER (5, 3X8, 9X2, 4) OEM PIAGGIO COMMON A LA RANGE-GU95020105 More informationQuantity required : 4 |
