Vehicle Exploded View - MOTO-GUZZI V7 750 V7 Racer 750 2011 USA 2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

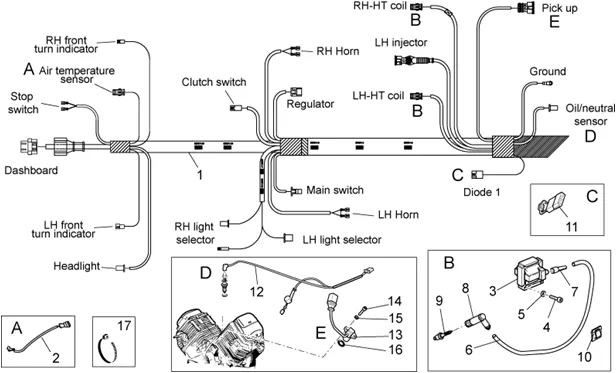

Chassis : 33.30 CIRCUIT ELECTRIQUE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/535/V7_Racer_750_2011_USA_2012_33.30.PNG)
1 |
883077 - CABLAGGIO PRINCIPALE V7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/2/img/71572.jpg)
2 |
SENSOR/DETECTEUR DE TEMPERATURE AIR OEM PIAGGIO COMMON A LA RANGE APRILIA ET MOTO GUZZI-AP8124936 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/3/3/img/130933.jpg)
3 |
BOBINE IGNITION OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA 1994 > 2004, 1200 GRISO 2007 > 2017, 750 V7 2008 > 2012, 1200 NORGE 2010 >, 1200 SPORT 2008 > 2013, 1100 V11 1999 > 2005-GU30716500 More informationQuantity required : 2 |
||||||
|
4 |
GU98682125-SCREW M4X25 More informationQuantity required : 4 |
||||||
|
5 |
GU95008204-WASHER 4, 3X8X0, 5 More informationQuantity required : 4 |
||||||
|
6 |
GU01718330 - CAVO A.T. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/8/1/img/129281.jpg)
7 |
CAPUCHON/RUBBER HT OEM MOTO GUZZI COMMON A LA RANGE-GU14717600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/4/3/img/101943.jpg)
8 |
GU01717430 - PIPETTA CANDELA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/9/7/img/69897.jpg)
9 |
SPARK PLUG BR8ES OEM PIAGGIO APRILIA 50-125 RS/MOTO-GUZZI 750 BREVA, NEVADA-861612 More informationQuantity required : 2 |
||||||
|
10 |
AP8120708 - GUIDE-CABLE ADH.NOIR More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/9/img/72189.jpg)
11 |
DIODE DE SECURITE OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA/APRILIA 50-125 RS, TUONO, RX, SX, 1000 RSV-2, FALCO, 650 PEGASO, 400-500 ATLANTIC-AP8212588 More informationQuantity required : 1 |
||||||
|
12 |
GU32724510-WIRING POINT MORT-OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/4/7/img/101947.jpg)
13 |
SENSOR OF PHASE/REGIME OEM PIAGGIO MOTO-GUZZI 750-1100-1200 BREVA, NORGE, GRISO, 1200 STELVIO, SPORT, 1100 CALIFORNIA, V11, 750 V7, 940 BELLAGIO-GU01721600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/7/5/img/73575.jpg)
14 |
SCREW BTR (5X12) OEM PIAGGIO COMMON ALA RANGE MOTO-GUZZI-GU98682212 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/1/img/132681.jpg)
15 |
WASHER PLATE (5. 3X10X0. 8) OEM PIAGGIO COMMON A LA RANGE-GU95008205 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
16 |
O-RING CIRCUIT ALIMENTATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-847180 More informationQuantity required : 1 |
||||||
|
17 |
GU14609650-CLAMP 3, 6X20, 6 More informationQuantity required : 31 |
||||||
|
17 |
GU49609601-CLAMP 2, 4X92 More informationQuantity required : 1 |
