Vehicle Exploded View - MOTO-GUZZI V7 750 V7 Racer 750 2011 USA 2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

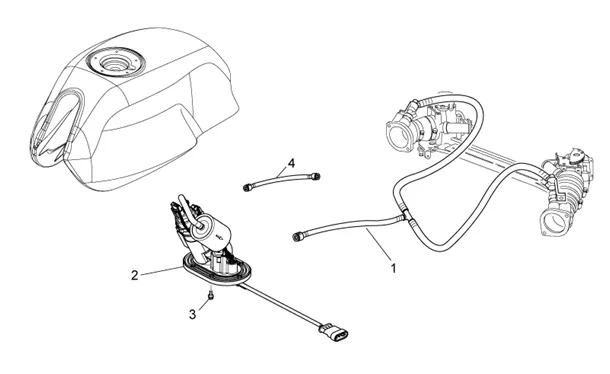

Chassis : 33.20 ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/535/V7_Racer_750_2011_USA_2012_33.20.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/5/4/8/img/98548.jpg)
1 |
FUEL HOSE "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7 -883265 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/8/3/8/img/127838.jpg)
1 |
HOSE D'ESSENCE (FITTING) OEM PIAGGIO MOTO-GUZZI 750 V7 RACER 2011 >, V7 SPECIAL 2012 >, V7 STONE 2014 >-2B000970 More informationQuantity required : 1 |
||||||
2 |
B063253 - GRUPPO ASPIRAZIONE CARBURANTE More informationQuantity required : 1 |
||||||
|
2 |
B063752-PUMP CARBURANTE * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
3 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 6 |
||||||
|
4 |
HOSE D'ESSENCE (FITTING) OEM PIAGGIO MOTO-GUZZI 750 V7 RACER 2011 >, V7 SPECIAL 2012 >, V7 STONE 2014 >-2B000970 More informationQuantity required : 1 |
