Vehicle Exploded View - MOTO-GUZZI V7 750 III Rough 750 E4 ABS 2018 (EMEA LATAM)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

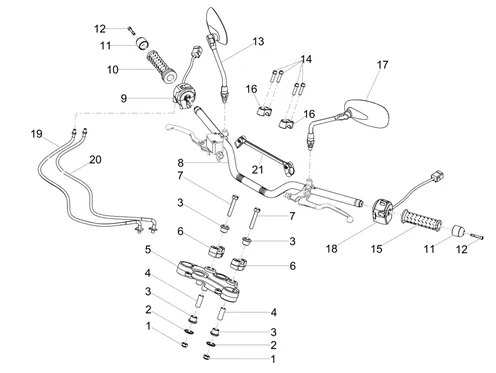

Guidon - commandes : 07.020 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/807/V7_III_Rough_750_E4_ABS_2018_(EMEA_LATAM)_07.020.png)
1 |
887904-(*) DADO More informationQuantity required : 2 |
||||||
|
2 |
2B002875-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/7/9/img/99579.jpg)
3 |
RUBBER OF FITTING KIT HANDLEBAR OEM MOTO GUZZI V7-887901 More informationQuantity required : 4 |
||||||
|
4 |
887902-(*) SPACER More informationQuantity required : 2 |
||||||
|
5 |
2B003250-PLA. STEERING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/4/9/4/img/142494.jpg)
6 |
2B004080-CAVALIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/9/3/img/99593.jpg)
7 |
SCREW TH (10X60) OEM PIAGGIO COMMON A LA RANGE-887915 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/0/7/8/img/98078.jpg)
8 |
HANDLEBAR MOTO OEM PIAGGIO MOTO-GUZZI V7 STONE-2B000671 More informationQuantity required : 1 |
||||||
|
9 |
COMMODO/SWITCH RIGHT OEM MOTO GUZZI V7 2017 >-2D000308 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/8/3/img/73483.jpg)
10 |
GRIP RIGHT RUBBER OEM MOTO-GUZZI V7-GU32603310 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/2/6/img/71226.jpg)
11 |
HANDLEBAR END OEM PIAGGIO APRILIA 750-900 SHIVER, 1000-1100 TUONO/MOTO-GUZZI BREVA, STELVIO, V7, V9, V100-AP8104509 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/9/5/0/img/127950.jpg)
12 |
SCREW BTR (6X35) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B002195 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/4/8/1/img/142481.jpg)
13 |
RIGHT MIRROR OEM PIAGGIO MOTO GUZZI V7 ROUGH 2018-2020/RACER-STONE 2017-2018/V7 STONE 850 2021 >-2B003766 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/4/img/71904.jpg)
14 |
SCREW BTR (8X30) DE T DE FORK OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8150540 More informationQuantity required : 4 |
||||||
|
15 |
GRIP RUBBER LEFT OEM MOTO GUZZI NEVADA, V7-GU32603010 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/4/9/5/img/142495.JPG)
16 |
CAVALIER DE HANDLEBAR OEM MOTO GUZZI 750 V7 III 2018-2020-2B004081 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/4/8/2/img/142482.jpg)
17 |
LEFT MIRROR OEM PIAGGIO MOTO GUZZI V7 ROUGH 2018-2020/RACER-STONE 2017-2018/V7 STONE 850 2021 >-2B003767 More informationQuantity required : 1 |
||||||
|
18 |
2D000307-GRIP GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/4/6/img/99546.jpg)
19 |
CABLE/CONTROL/TRANSMISSION OUVERTURE THROTTLE OEM PIAGGIO MOTO-GUZZI 750 NEVADA 2012 > 2013, V7 2016 >-887852 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/4/7/img/99547.jpg)
20 |
CABLE/CONTROL/TRANSMISSION LATCH THROTTLE OEM PIAGGIO MOTO-GUZZI 750 NEVADA 2012 > 2013, V7 2016 >-887853 More informationQuantity required : 1 |
||||||
|
21 |
2B004975-TRAVERSE HANDLEBAR More informationQuantity required : 1 |
