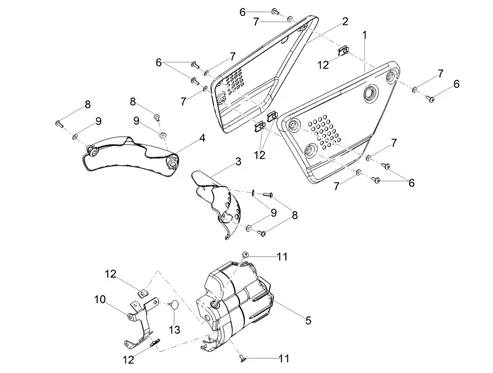

Carrosserie : 02.100 CARROSSERIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/807/V7_III_Rough_750_E4_ABS_2018_(EMEA_LATAM)_02.100.png)
1 |
2B004965-BODY PANEL G More informationQuantity required : 1 |
||||||
|
2 |
2B004966-BODY PANEL D More informationQuantity required : 1 |
||||||
|
3 |
2B003451-COVER More informationQuantity required : 1 |
||||||
|
4 |
2B003450-COVER More informationQuantity required : 1 |
||||||
|
5 |
COVER STARTER MOTOR OEM PIAGGIO MOTO-GUZZI 750 V7 2018 > 900 V9 2018 >-2B002943 More informationQuantity required : 1 |
||||||
|
6 |
976614-SCREW TCCCE IX M5X15 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/8/6/5/img/101865.jpg)
7 |
WASHER PLATE NYLON (5. 5X12X1) OEM PIAGGIO COMMON A LA RANGE-GU01577830 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/7/img/70837.jpg)
8 |
SCREW BTR (5X12) DE FAIRING OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI V7-V9-896174 More informationQuantity required : 4 |
||||||
|
9 |
843213-WASHER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/9/4/8/img/140948.jpg)
10 |
BRACKET DE COVER STARTER MOTOR OEM PIAGGIO MOTO-GUZZI 750 V7 2018 > 900 V9 2018 >-2B002937 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
11 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
12 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
13 |
CAP RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8120001 More informationQuantity required : 1 |
All the exploded views of this vehicle
-
