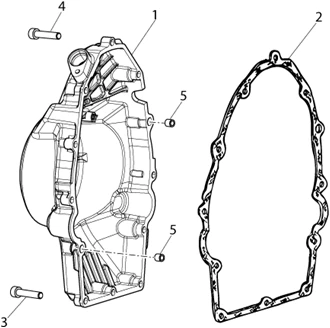

Moteur : 34.35 COUVERCLE DISTRIBUTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/534/V7_II_Stone_ABS_750_2015_34.35.PNG)
Search
1 |
2A000085-COVER GENERATORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/2/8/9/img/99289.jpg)
2 |
GASKET OF COVER OEM MOTO GUZZI BREVA, NEVADA, STRADA, TARGA, V7, V85, V9-887003 More informationQuantity required : 1 |
||||||
|
3 |
GU98682325-SCREW TCEI M6X25 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/4/img/133184.JPG)
4 |
SCREW THC M6X30 OEM MOTO GUZZI COMMON A LA RANGE-GU98682330 More informationQuantity required : 2 |
||||||
|
5 |
GU19002020-BUSH 6, 6X9X13 More informationQuantity required : 2 |
