Vehicle Exploded View - MOTO-GUZZI V7 750 V7 II Stone ABS 750 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

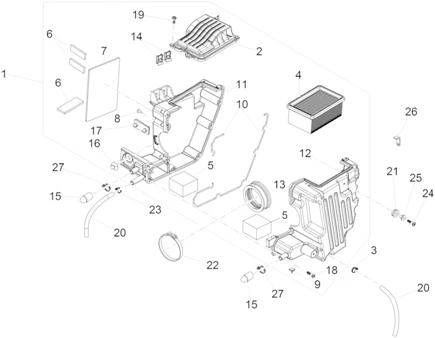

Chassis : 33.22 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/534/V7_II_Stone_ABS_750_2015_33.22.PNG)
1 |
887842-AIR BOX ASSEMBLY More informationQuantity required : 1 |
||||||
|
2 |
887843-COVER FILTRO ARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/0/img/72130.jpg)
3 |
HOSE CLAMP HOSE (9X11. 9) OEM PIAGGIO COMMON A LA RANGE-AP8201358 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/4/4/img/71244.jpg)
4 |
ELEMENT/MOUSSE DE AIR FILTER MOTO OEM PIAGGIO MOTO-GUZZI 750 NEVADA 2012 >, V7 2017 >, V9 2016 >-AP8104924 More informationQuantity required : 1 |
||||||
|
5 |
AP8104525-FILTER BLOW-BY More informationQuantity required : 2 |
||||||
|
6 |
883127-GOMMA ADESIVA 5MM More informationQuantity required : 1 |
||||||
|
7 |
AP8144553-GOMMA INF. APPOGGIO BATTERIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/9/img/71419.JPG)
8 |
CAP DE VIDANGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8120876 More informationQuantity required : 2 |
||||||
|
9 |
AP8120455-SILENT BLOCK STAND More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/8/img/71408.jpg)
10 |
GASKET COVER DE AIR FILTER (D3) OEM PIAGGIO COMMON A LA RANGE-AP8120615 More informationQuantity required : 2 |
||||||
|
11 |
887844-GUSCIO DX CASSA FILTRO More informationQuantity required : 1 |
||||||
|
12 |
887845-GUSCIO SX CASSA FILTRO More informationQuantity required : 1 |
||||||
|
13 |
887815-MANICOTTO DI ASPIRAZIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
14 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/0/5/img/72005.JPG)
15 |
CAPUCHON DE BODY DE FILTER OEM PIAGGIO COMMON ALA RANGE APRILIA/MOTO GUZZI-AP8161054 More informationQuantity required : 2 |
||||||
|
16 |
890760-BRACKET More informationQuantity required : 1 |
||||||
|
17 |
AP8144729-TAMPONE DI APPOGGIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
18 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
19 |
SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509 More informationQuantity required : 4 |
||||||
|
20 |
AP8120772-HOSE RENIFLARD OIL More informationQuantity required : 1 |
||||||
|
21 |
GU91551010-RUBBER More informationQuantity required : 2 |
||||||
|
22 |
CM258303-FASCETTA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/9/img/71199.jpg)
23 |
CLAMP HOSE (D 15. 8) OEM PIAGGIO COMMON A LA RANGE-AP8102766 More informationQuantity required : 3 |
||||||
|
24 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
25 |
BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023 More informationQuantity required : 2 |
||||||
|
26 |
GU31112965-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/2/img/71182.jpg)
27 |
CLAMP SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-AP8102520 More informationQuantity required : 2 |
