Vehicle Exploded View - MOTO-GUZZI V11 1100 Cafe Ballabio 1100 2003-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

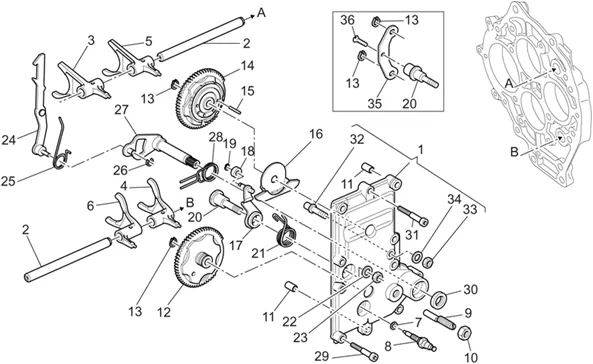

Moteur : 34.15 SELECTEUR BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/523/V11_Cafe_Ballabio_1100_2003-2005_34.15.PNG)
1 |
GU01201691 - COPERCHIO LATERALE NERO More informationQuantity required : 1 |
||||||
|
2 |
GU04232400-SHAFT OF FOURCHETTE More informationQuantity required : 2 |
||||||
|
3 |
GU04230500-FOURCHETTE 1A More informationQuantity required : 1 |
||||||
|
4 |
GU04230800 - FOURCHETTE 2A More informationQuantity required : 1 |
||||||
|
5 |
GU04232600-FOURCHETTE 3A-5A More informationQuantity required : 1 |
||||||
|
6 |
GU04231200-FOURCHETTE 4A-6A More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/2/5/img/129125.jpg)
7 |
WASHER PLATE (8, 25X15X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU12154200 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/5/4/8/img/129548.jpg)
8 |
SENSOR OF POINT MORT OEM PIAGGIO MOTO-GUZZI 850-1100-1200 BREVA, GRISO, NORGE, 940 GELLAGIO, 750 V7, NEVADA, 1100 CALIFORNIA, V11, 1200 STELVIO, SPORT-GU19207220 More informationQuantity required : 1 |
||||||
|
9 |
GU04237800-SPINDLE EXCENTRIQUE More informationQuantity required : 1 |
||||||
|
10 |
GU92606512-NUT BAS M12X1, 25 More informationQuantity required : 1 |
||||||
|
11 |
GU19002020-BUSH 6, 6X9X13 More informationQuantity required : 2 |
||||||
|
12 |
GU01236930-SELETTORE 2A-4A-6A More informationQuantity required : 1 |
||||||
|
13 |
GU90271012-BUSH SEEGER More informationQuantity required : 4 |
||||||
|
14 |
GU01233630 - SELETTORE 1A-3A-5A More informationQuantity required : 1 |
||||||
|
15 |
GU92296745-ROLLER More informationQuantity required : 5 |
||||||
|
16 |
GU04237500-PLATE More informationQuantity required : 1 |
||||||
|
17 |
GU04238600-LEVER More informationQuantity required : 1 |
||||||
|
18 |
GU04234700 - ROULEAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/1/6/img/132116.jpg)
19 |
CLIPS/CIRCLIPS OEM MOTO GUZZI COMMON A LA RANGE-GU90271008 More informationQuantity required : 1 |
||||||
|
20 |
GU01234660-PERNO PER LEVA FERMO MARCIE More informationQuantity required : 1 |
||||||
|
20 |
GU04234600 - GOUJON DE LEVIER More informationQuantity required : 1 |
||||||
|
21 |
GU04238200 - RESSORT More informationQuantity required : 1 |
||||||
|
22 |
GU95008308-WASHER More informationQuantity required : 1 |
||||||
|
23 |
GU92606208-NUT M8X1, 25 More informationQuantity required : 1 |
||||||
|
24 |
GU01235130-ARPIONISMO More informationQuantity required : 1 |
||||||
|
25 |
GU04238300 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/4/8/img/132148.jpg)
26 |
CLIPS/CIRCLIPS OEM MOTO GUZZI COMMON A LA RANGE-GU90280007 More informationQuantity required : 1 |
||||||
|
27 |
GU01237032-ALBERO SELETTORE More informationQuantity required : 1 |
||||||
|
28 |
GU04239200 - RESSORT More informationQuantity required : 1 |
||||||
|
29 |
GU98680330-SCREW TCEI M6X30 More informationQuantity required : 9 |
||||||
|
30 |
GU90401526-BUSH D'ETANCHEITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
31 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8150285 More informationQuantity required : 2 |
||||||
|
32 |
GU01234030 - ECCENTRICO DI REGOLAZIONE More informationQuantity required : 1 |
||||||
|
33 |
GU92606208-NUT M8X1, 25 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.jpg)
34 |
WASHER 8, 4X15X1, 8 COMMON A LA RANGE MOTO GUZZI/APRILIA-GU95008208 More informationQuantity required : 1 |
||||||
|
35 |
GU01236160-PLATE COLLEG. PERNI SELETTORI More informationQuantity required : 1 |
||||||
|
36 |
GU98280614-SCREW M6X14 More informationQuantity required : 1 |
