Vehicle Exploded View - MOTO-GUZZI V11 1100 Cafe Ballabio 1100 2003-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

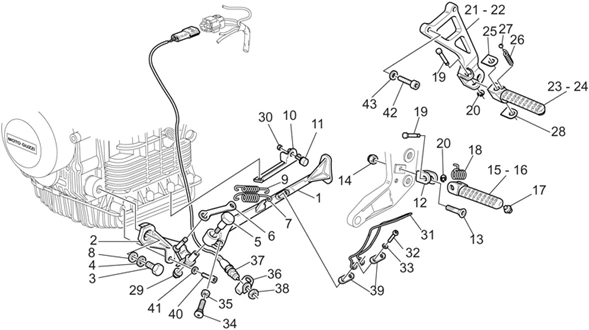

Chassis : 33.22 BÉQUILLE LATÉRALE-REPOSE PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/523/V11_Cafe_Ballabio_1100_2003-2005_33.22.PNG)
1 |
GU01432190 - CAVALLETTO LATERALE More informationQuantity required : 1 |
||||||
|
2 |
GU01433460 - PIASTRA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/7/0/6/img/130706.jpg)
3 |
SCREW MAINTIEN DE PLATINE FOOTREST OEM MOTO-GUZZI 1000 DAYTONA, V10, 1100 SPORT, V11-GU30432801 More informationQuantity required : 1 |
||||||
|
4 |
GU95021114 - RONDELLE SPECIALE More informationQuantity required : 1 |
||||||
|
5 |
GU01433201-PERNO FISS BRAC LAT More informationQuantity required : 1 |
||||||
|
6 |
GU01432730-PIASTRINA More informationQuantity required : 1 |
||||||
|
7 |
SPRING EXTERNE DE SIDE STAND OEM PIAGGIO MOTO-GUZZI 1000 DAYTONA, QUOTA, V10, 1100 SPORT, V11, 1200 STELVIO-GU30434001 More informationQuantity required : 1 |
||||||
|
8 |
GU95100120 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/7/1/1/img/130711.jpg)
9 |
SPRING INTERNE DE SIDE STAND OEM PIAGGIO MOTO-GUZZI 1000 DAYTONA, QUOTA, V10, 1100 SPORT, V11, 1200 STELVIO-GU30434000 More informationQuantity required : 1 |
||||||
|
10 |
GU01433600-PIASTRINA More informationQuantity required : 1 |
||||||
|
11 |
GU93242007-BUFFER More informationQuantity required : 1 |
||||||
|
12 |
GU30442705-BRACKET More informationQuantity required : 2 |
||||||
|
13 |
GU98251040-SCREW More informationQuantity required : 2 |
||||||
|
14 |
GU92640510-NUT More informationQuantity required : 2 |
||||||
|
15 |
GU30440705 - R-PIED PILOTE D More informationQuantity required : 1 |
||||||
|
16 |
GU30441805 - R-PIED PILOTE G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/6/0/img/73460.jpg)
17 |
PROTECTIVE SCREW FOR FOOTREST"PIAGGIO GENUINE PART" COMMON TO MOTO-GUZZI/APRILIA RANGE -GU30441005- More informationQuantity required : 2 |
||||||
|
18 |
GU30441105 - RESSORT DE RETOUR More informationQuantity required : 2 |
||||||
|
19 |
GU30442205-PIVOT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/7/img/63797.jpg)
20 |
CLIPS/CIRCLIPS DIAMETRE 5MM OEM PIAGGIO COMMON A LA RANGE-005965 More informationQuantity required : 4 |
||||||
|
21 |
GU01444640-STAFFA DX NERO More informationQuantity required : 1 |
||||||
|
22 |
GU01444740-STAFFA SX NERO * More informationQuantity required : 1 |
||||||
|
23 |
GU30442405-REP-FEET PASS. DTE More informationQuantity required : 1 |
||||||
|
24 |
GU30442805-REP-P. PASS. GCHE More informationQuantity required : 1 |
||||||
|
25 |
GU30443105-PLATE FDC R-FOOT More informationQuantity required : 2 |
||||||
|
26 |
GU94321062-SPRING More informationQuantity required : 2 |
||||||
|
27 |
GU92295706-BILLE More informationQuantity required : 2 |
||||||
|
28 |
GU30441605-PLATE More informationQuantity required : 2 |
||||||
|
29 |
GU92630310-NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/2/8/img/132528.jpg)
30 |
GU92650036 - ECROU BRIDE More informationQuantity required : 1 |
||||||
|
31 |
GU01431930-LEVA More informationQuantity required : 1 |
||||||
|
32 |
GU98350318-SCREW M6X18 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
33 |
WASHER (6, 4X10X, 7) OEM PIAGGIO COMMON A LA RANGE-AP8152105 More informationQuantity required : 2 |
||||||
|
34 |
GU97040220-SCREW More informationQuantity required : 1 |
||||||
|
35 |
GU92606205 - ECROU More informationQuantity required : 1 |
||||||
|
36 |
GU01433860-PIASTRINA More informationQuantity required : 1 |
||||||
|
37 |
GU01759130 - INTERRUTTORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/9/1/img/132491.jpg)
38 |
NUT (M8) OEM PIAGGIO COMMU A LA RANGE-GU92606508 More informationQuantity required : 1 |
||||||
|
39 |
GU01431830-FLANGIA More informationQuantity required : 2 |
||||||
|
40 |
GU98682418 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/6/img/132666.jpg)
41 |
WASHER PLATE (8, 4X14, 57X1, 6) OEM PIAGGIO COMMON A LA RANGE-GU95005308 More informationQuantity required : 1 |
||||||
|
42 |
GU98882425 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
43 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 4 |
