Vehicle Exploded View - MOTO-GUZZI V100 1000 Mandello S E5 ABS 2022-2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

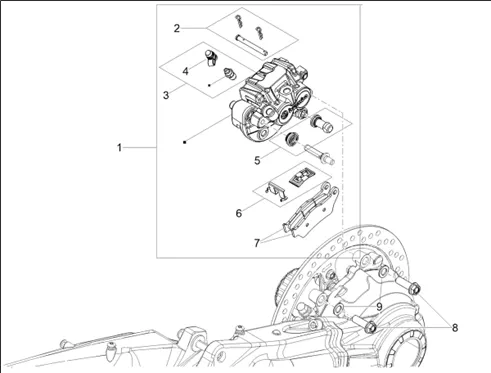

Système de freinage : 06.04 PINCE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1309/V100_Mandello_S_E5_ABS_2022-2024_(EMEA)_06.04.png)
1 |
2B008299-REAR BRAKE CALIPER More informationQuantity required : 1 |
||||||
|
2 |
2B011117-PIVOT WITH GOUPILLE More informationQuantity required : 1 |
||||||
|
3 |
2B009674 PURGE + CAPUCHON More informationQuantity required : 1 |
||||||
|
4 |
AP8113070-CAPUCHON RENIFLARD More informationQuantity required : 1 |
||||||
|
5 |
2B009675 HOOD More informationQuantity required : 1 |
||||||
|
6 |
2B011118-KIT SPRING-STEEL CLIP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/8/4/3/img/204843.jpg)
7 |
BRAKE PAD REAR OEM MOTO GUZZI V100 2023 >, STELVIO 2024-2B011116 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/6/img/71966.jpg)
8 |
SCREW FLANGE TH (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8152320 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.jpg)
9 |
WASHER ELASTIC (D10. 4) OEM PIAGGIO COMMON A LA RANGE-AP8150292 More informationQuantity required : 2 |
