Vehicle Exploded View - MOTO-GUZZI V100 1000 Mandello S E5 ABS 2022-2024 (EMEA) MOTO-GUZZI

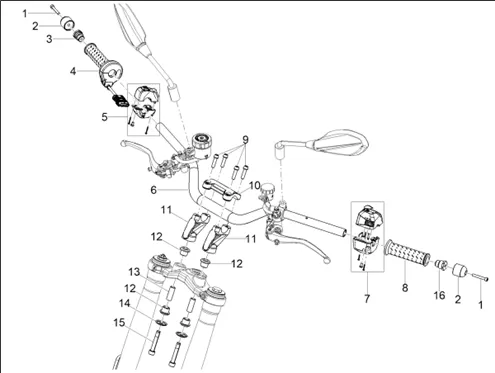

Guidon - commandes : 07.02 GUIDON - COMMANDES
Guidon - Commandes
Search
SCREW BTR M6X40 OEM PIAGGIO COMMON A LA RANGE-AP8152003

1
P2R reference P2R reference 195969
Maker reference Maker reference AP8152003

SCREW BTR M6X40 OEM PIAGGIO COMMON A LA RANGE-AP8152003

More information

Quantity required : 2

HANDLEBAR END OEM PIAGGIO APRILIA 750-900 SHIVER, 1000-1100 TUONO/MOTO-GUZZI BREVA, STELVIO, V7, V9, V100-AP8104509

2
P2R reference P2R reference 71226
Maker reference Maker reference AP8104509

HANDLEBAR END OEM PIAGGIO APRILIA 750-900 SHIVER, 1000-1100 TUONO/MOTO-GUZZI BREVA, STELVIO, V7, V9, V100-AP8104509

More information

Quantity required : 2

2S001436 - TERM.POIDS ANTIVIB.

3
P2R reference P2R reference 172732
Maker reference Maker reference 2S001436

2S001436-TERM. POIDS ANTIVIB.

More information

Quantity required : 1

2D000514 - POIGNEE ACCELERATEUR AVEC POIGNEE CHAUF

4
P2R reference P2R reference 172733
Maker reference Maker reference 2D000514

2D000514-GRIP ACCELERATEUR WITH GRIP CHAUF

More information

Quantity required : 1

2D000552 - RIGHT COMMAND WITH DRL/FOG

5
P2R reference P2R reference 184904
Maker reference Maker reference 2D000552

DEVIATEUR/CONTACTEUR FEUX RIGHT OEM PIAGGIO APRILIA 660 TUAREG 2021 >, MOTO GUZZI STELVIO ARAS/V100 2022 >-2D000552

More information

Quantity required : 1

2B008948 - HANDLEBAR

6
P2R reference P2R reference 203714
Maker reference Maker reference 2B008948

2B008948-HANDLEBAR

More information

Quantity required : 1

2D000549 - LEFT COMMAND

7
P2R reference P2R reference 184903
Maker reference Maker reference 2D000549

DEVIATEUR/CONTACTEUR FEUX LEFT OEM PIAGGIO APRILIA 660 TUAREG 2021 >, MOTO GUZZI STELVIO ARAS/V100 2022 >-2D000549

More information

Quantity required : 1

1D003485 - POIGNEE RECHAUFFEE GAUCHE

8
P2R reference P2R reference 195933
Maker reference Maker reference 1D003485

1D003485-GRIP RECHAUFFEE LEFT

More information

Quantity required : 1

SCREW BTR (8X30) DE T DE FORK OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8150540

9
P2R reference P2R reference 71904
Maker reference Maker reference AP8150540

SCREW BTR (8X30) DE T DE FORK OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8150540

More information

Quantity required : 4

2B011285 - UPPER HANDLEBAR U-BOLT

10
P2R reference P2R reference 203715
Maker reference Maker reference 2B011285

2B011285-UPPER HANDLEBAR U-BOLT

More information

Quantity required : 1

2B010253 - LOWER HANDLEBAR U-BOLT

11
P2R reference P2R reference 203716
Maker reference Maker reference 2B010253

2B010253-LOWER HANDLEBAR U-BOLT

More information

Quantity required : 2

RUBBER OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8144222

12
P2R reference P2R reference 71754
Maker reference Maker reference AP8144222

RUBBER OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8144222

More information

Quantity required : 1

SPACER (10, 1X14, 1X38) OEM PIAGGIO COMMON A LA RANGE-854827

13
P2R reference P2R reference 39893
Maker reference Maker reference 854827

SPACER (10, 1X14, 1X38) OEM PIAGGIO COMMON A LA RANGE-854827

More information

Quantity required : 1

WASHER SPECIALE DE HANDLEBAR OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8123721

14
P2R reference P2R reference 108963
Maker reference Maker reference AP8123721

WASHER SPECIALE DE HANDLEBAR OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8123721

More information

Quantity required : 2

SCREW BTR (10X60) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B004798

15
P2R reference P2R reference 155943
Maker reference Maker reference 2B004798

SCREW BTR (10X60) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B004798

More information

Quantity required : 2

AP8706479 - TERM.POIDS ANTIVIB.

16
P2R reference P2R reference 172734
Maker reference Maker reference AP8706479

AP8706479-TERM. POIDS ANTIVIB.

More information

Quantity required : 1
