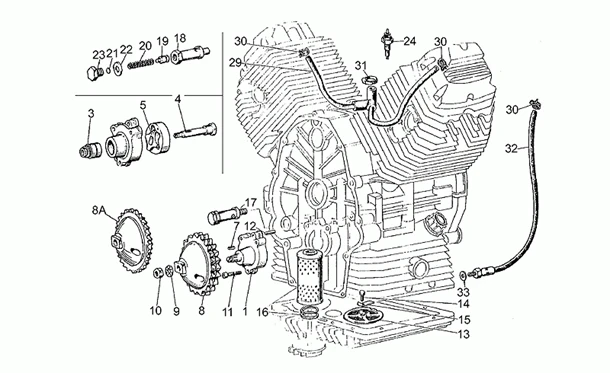

Vehicle Exploded View - MOTO-GUZZI V35 350 V 35 C - V 50 C 350 1982-1986

	P2R reference	129538
	Maker reference	GU19146422

GU19146422-PUMP OIL

	P2R reference	132436
	Maker reference	GU92252210

GU92252210-BEARING A ROULEAUX

	P2R reference	165211
	Maker reference	GU19147820

GU19147820 - ARBRE ENGR.POMPE

	P2R reference	129540
	Maker reference	GU19148420

GU19148420 - ROTOR

	P2R reference	165212
	Maker reference	GU92296726

GU92296726 - ROULEAU GUIDE

	P2R reference	129539
	Maker reference	GU19147720

GU19147720 - ENGRENAGE

	P2R reference	165213
	Maker reference	GU19147721

GU19147721 - ENGRENAGE

	P2R reference	71929
	Maker reference	AP8152220

WASHER GEAR OIL PUMP (10, 5X16X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8152220

	P2R reference	132476
	Maker reference	GU92602510

GU92602510-NUT

	P2R reference	141235
	Maker reference	GU98620335

SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-GU98620335

	P2R reference	129456
	Maker reference	GU19018920

GU19018920-GOUPILLE

	P2R reference	129541
	Maker reference	GU19152200

OIL FILTER OEM MOTO GUZZI BREVA 2003 > 2009, CALIFORNIA, ELDORADO, GRISO 2015 > 2018-GU19152200

	P2R reference	132927
	Maker reference	GU98084314

SCREW TH (6X14) OEM PIAGGIO COMMON A LA RANGE-GU98084314

	P2R reference	132760
	Maker reference	GU95187006

PLATE MAINTIEN CREPINE OIL FILTER OEM MOTO GUZZI-GU95187006

	P2R reference	129542
	Maker reference	GU19153000

OIL FILTER "PIAGGIO GENUINE PART" MOTO-GUZZI V35, V50, V65 -GU19153000-

	P2R reference	129090
	Maker reference	GU10158701

GU10158701-BODY VALVE

	P2R reference	164728
	Maker reference	GU12150900

GU12150900 - PISTON

	P2R reference	132640
	Maker reference	GU94321072

SPRING DE VALVE OEM MOTO GUZZI COMMON A LA RANGE 2001 <-GU94321072

	P2R reference	129124
	Maker reference	GU12150700

GU12150700 - BOUCHON

	P2R reference	132733
	Maker reference	GU95100523

WASHER 14, 5X20X1 OEM MOTO GUZZI COMMON A LA RANGE-GU95100523

	P2R reference	164729
	Maker reference	GU12159000

GU12159000 - BOUCHON DE CLAPET

	P2R reference	131370
	Maker reference	GU31999581

GU31999581 - DETECTEUR PRESSION

	P2R reference	165214
	Maker reference	GU19159600

GU19159600 - TUYAU RENIFLARD RADIATEUR

	P2R reference	72893
	Maker reference	CM002907

CLAMP FOR HOSE DE 13MM OEM PIAGGIO COMMON A LA RANGE-CM002907

	P2R reference	130132
	Maker reference	GU28157850

OIL HOSE CLAMP "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA, 850 LE-MANS, 850 T3, 1000 SP, STRADA -GU28157850

	P2R reference	165215
	Maker reference	GU19159300

GU19159300 - TUYAU RETOUR D HUILE

	P2R reference	165216
	Maker reference	GU19159320

GU19159320 - TUYAU

	P2R reference	129125
	Maker reference	GU12154200

WASHER PLATE (8, 25X15X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU12154200
