Vehicle Exploded View - MOTO-GUZZI V35 350 V 35 C - V 50 C 350 1982-1986
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

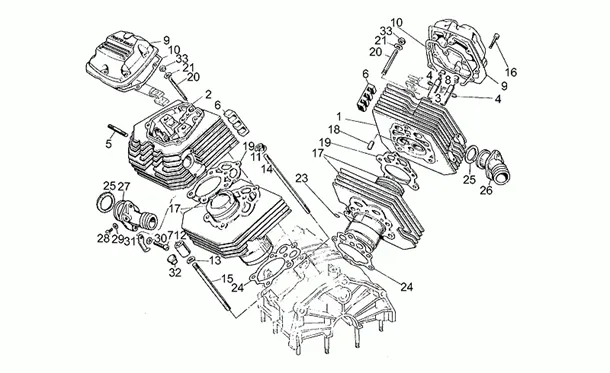

Moteur : 34.22 TÊTE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/917/V_35_C_-_V_50_C_350_1982-1986_34.22.png)
1 |
|
||||||
|
1 |
GU19022180 - CULASSE More informationQuantity required : 1 |
||||||
|
2 |
|
||||||
|
2 |
GU19022280 - CULASSE More informationQuantity required : 1 |
||||||
|
3 |
GU61036801 - GUIDE SOUPAPE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/5/0/img/132150.jpg)
4 |
CLIPS/CIRCLIPS (12. 5X1. 5) VALVE OEM MOTO GUZZI-GU90353009 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/8/1/1/img/132811.jpg)
5 |
STUD (6X42) OEM PIAGGIO COMMON A LA RANGE-GU96506042 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/6/4/img/129464.jpg)
6 |
PLATE ANTIVIBRATILE OEM MOTO GUZZI COMMON A LA RANGE-GU19025300 More informationQuantity required : 4 |
||||||
|
7 |
GU98822325 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/7/5/img/129475.jpg)
8 |
OIL SEAL GUIDE DE VALVE OEM PIAGGIO MOTO-GUZZI 750 BREVA, NEVADA, STRADA, V7-GU19037820 More informationQuantity required : 4 |
||||||
|
9 |
GU19023520 - CACHE CULBUTEUR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/2/8/8/img/99288.jpg)
10 |
GASKET COVER DE CYLINDER HEAD OEM PIAGGIO FOR MOTORCYCLE-GUZZI 750 BREVA, NEVADA, V-7-887002 More informationQuantity required : 2 |
||||||
|
11 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/5/7/img/129157.jpg)
12 |
NUT COLONNE DE STEERING OU DE CASING ENGINE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU13021900 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/3/img/132753.jpg)
13 |
WASHER AJUSTEMENT (10. 5X18X0. 8) OEM MOTO GUZZI-GU95129180 More informationQuantity required : 4 |
||||||
|
14 |
GU96510182 - GOUJON More informationQuantity required : 4 |
||||||
|
15 |
GU96510125 - GOUJON More informationQuantity required : 4 |
||||||
|
16 |
GU98622325-SCREW M6X25 More informationQuantity required : 12 |
||||||
|
17 |
GU19060121 - CYLINDRE AV.PISTON More informationQuantity required : 2 |
||||||
|
17 |
GU19060181 - CYLINDRE AV.PISTON, BRUTE More informationQuantity required : 2 |
||||||
|
18 |
GU19021320 - BAGUE More informationQuantity required : 2 |
||||||
|
19 |
GU19022082 - JOINT More informationQuantity required : 2 |
||||||
|
19 |
GU27022020 - JOINT More informationQuantity required : 2 |
||||||
|
20 |
GU96508107 - TIGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
21 |
WASHER ELASTIC (8X15X0. 3) OEM PIAGGIO COMMON A LA RANGE-GU61270300 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/5/img/131925.jpg)
23 |
O-RING OEM MOTO GUZZI COMMON A LAGAMME-GU61027200 More informationQuantity required : 2 |
||||||
|
24 |
CYLINDER BASE GASKET DE CYLINDER OEM PIAGGIO MOTO-GUZZI V35/V50/V65-GU19020820 More informationQuantity required : 2 |
||||||
|
25 |
GU19115520 - JOINT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/5/2/5/img/129525.jpg)
25 |
GU19115580 - JOINT More informationQuantity required : 2 |
||||||
|
26 |
GU19115035 - PIPE ADMISSION More informationQuantity required : 1 |
||||||
|
26 |
GU19115080 - PIPE ADMISSION More informationQuantity required : 1 |
||||||
|
27 |
GU19115036 - PIPE ADMISSION More informationQuantity required : 1 |
||||||
|
27 |
|
||||||
|
28 |
GU98310610-SCREW More informationQuantity required : 2 |
||||||
|
29 |
GU95100116-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
30 |
WASHER SPRING (6. 7X11. 8X0. 4) OEM PIAGGIO COMMON A LA RANGE-GU61013800 More informationQuantity required : 2 |
||||||
|
31 |
GU19718000 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/8/img/132578.jpg)
32 |
CAP OBTURATEUR ORINE MOTO GUZZI COMMON A LA RANGE-GU93180245 More informationQuantity required : 4 |
||||||
|
33 |
GU19021920-NUT More informationQuantity required : 2 |
