Vehicle Exploded View - PIAGGIO TYPHOON 50 2T E2 2009-2011 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

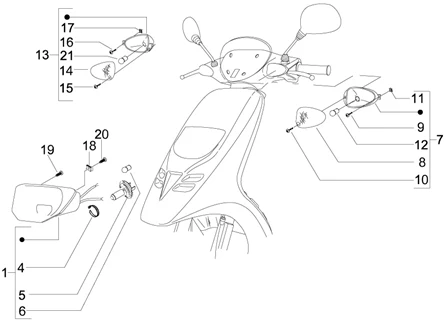

Circuit électrique : 06.03 ECLAIRAGES AVANT - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/944/Typhoon_50_2T_E2_2009-2011_(APAC_EMEA)_06.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/8/5/2/img/81852.jpg)
1 |
HEADLAMP "PIAGGIO GENUINE PART" 50 TYPHOON 2006>2010 -582975 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/6/0/0/img/81600.jpg)
1 |
HEAD LIGHT - "PIAGGIO GENUINE PART" 50 TYPHOON 2004>2009 -581578- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
4 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/2/img/65942.jpg)
5 |
LIGHT BULB FOR HEADLAMP 12V-35/35W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -219528 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/2/img/65962.jpg)
5 |
231215 - AMPOULE 12V-35/35W More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
6 |
LIGHT BULB 12V 5W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -2920225 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/9/img/65759.jpg)
6 |
LIGHT BULB 12V 4W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -163015 More informationQuantity required : 1 |
||||||
7 |
FLASHER-FRONT-LEFT "PIAGGIO GENUINE PART" 50 TYPHOON 2006>2010, NRG 1998>2005 -638519 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/5/0/6/img/85506.jpg)
8 |
638521 - TRANSP CLIGN AVG More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/7/img/65387.jpg)
9 |
SCREW - (2,9X9,5) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015727 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/0/img/65390.jpg)
10 |
015730 - VIS S01573000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/1/img/72921.jpg)
11 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM017403 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
12 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/5/0/5/img/85505.jpg)
13 |
FLASHER-FRONT-RIGHT "PIAGGIO GENUINE PART" 50 TYPHOON 2006>2010, NRG 1998>2005 -638520 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/5/0/7/img/85507.jpg)
14 |
638522 - TRANSP CLIGN AVD More informationQuantity required : 1 |
||||||
|
15 |
SCREW - (2,9X9,5) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015727 More informationQuantity required : 1 |
||||||
|
16 |
015730 - VIS S01573000 More informationQuantity required : 1 |
||||||
|
17 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM017403 More informationQuantity required : 1 |
||||||
|
18 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM017403 More informationQuantity required : 2 |
||||||
|
19 |
SCREW - (2,9X9,5) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015727 More informationQuantity required : 2 |
||||||
|
20 |
015730 - VIS S01573000 More informationQuantity required : 2 |
||||||
|
21 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332 More informationQuantity required : 1 |
