Vehicle Exploded View - PIAGGIO TYPHOON 50 2T E2 2009-2011 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

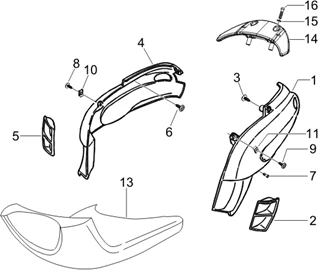

Châssis - parties plastiques - carrosseries : 02.32 COUVERTURES LATERALES - SPOILER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/944/Typhoon_50_2T_E2_2009-2011_(APAC_EMEA)_02.32.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/9/1/7/img/94917.jpg)
1 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" 50 TYPHOON 2004> YELLOW 928/A -CM00300100GP More informationQuantity required : 1 |
||||||
1 |
CM0030015090 - FLANC ARG NOIR 94 EX.923235-923290 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/9/1/8/img/94918.jpg)
1 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" 50 TYPHOON ANCIEN MODELE RAW TO BE PAINTED -CM0030015 More informationQuantity required : 1 |
||||||
|
2 |
259905000C - PRISE D'AIR GAUCHE NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/7/5/6/img/78756.jpg)
2 |
463842000C - PRISE D'AIR DROITE NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
3 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349 More informationQuantity required : 1 |
||||||
|
4 |
CM00300200GP - FLANC DROIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/9/3/9/img/94939.jpg)
4 |
REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 50 TYPHOON 2004> BLACK 94 -CM0030025090 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/9/3/7/img/94937.jpg)
4 |
REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 50 TYPHOON 2004> RAW TO BE PAINTED -CM0030025- More informationQuantity required : 1 |
||||||
|
5 |
463842000C - PRISE D'AIR DROITE NOIR More informationQuantity required : 1 |
||||||
|
6 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
7 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 4 |
||||||
|
8 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
9 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
10 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
11 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
|
13 |
SPOILER BLACK "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2005 -575900- More informationQuantity required : 1 |
||||||
|
14 |
624334000C - POIGNEE ARR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/8/img/65348.jpg)
15 |
012538 - RONDELLE S01253800 More informationQuantity required : 2 |
||||||
|
16 |
431741 - BOULON More informationQuantity required : 2 |
