Vehicle Exploded View - PIAGGIO TYPHOON 50 2T E2 2009-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

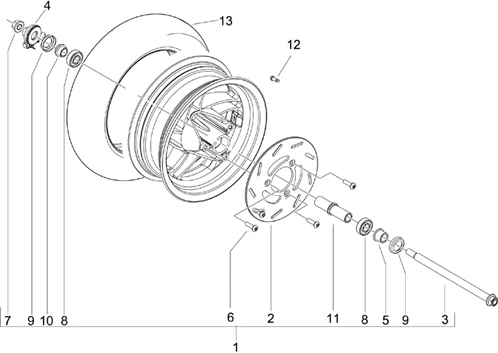

Suspensions - roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/113/Typhoon_50_2T_E2_2009-2010_04.11.PNG)
1 |
56384R0090 - ROUE AV. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/0/1/2/img/80012.jpg)
2 |
FRONT DISC BRAKE(3 HOLES) "PIAGGIO GENUINE PART" GILERA 50 STALKER/PIAGGIO 50 TYPHOON 2006>2010 -56408R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/6/6/9/img/95669.jpg)
3 |
FRONT WHEEL AXLE "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2009/GILERA 50 STALKER -CM076901- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/0/2/img/78002.jpg)
4 |
SPEEDOMETER SOCKET "PIAGGIO GENUINE PART" 50 TYPHOON 2000>2010/GILERA 50 STALKER 2005> -298798 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/4/img/66104.jpg)
5 |
271748 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/6/6/img/67066.jpg)
6 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -564606 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
7 |
NUT - FOR WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271740 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/0/2/img/68102.jpg)
8 |
FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -649910 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/7/img/67057.jpg)
9 |
564475 - RONDELLE D'AR More informationQuantity required : 2 |
||||||
|
10 |
271743 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
10 |
649914 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
11 |
271746 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
12 |
270991 - VALVE More informationQuantity required : 1 |
||||||
|
13 |
2709460003 - PNEU 120/90-10 56J TL MICHELIN REGGAE More informationQuantity required : 1 |
