Vehicle Exploded View - PIAGGIO TYPHOON 50 2T E2 2009-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

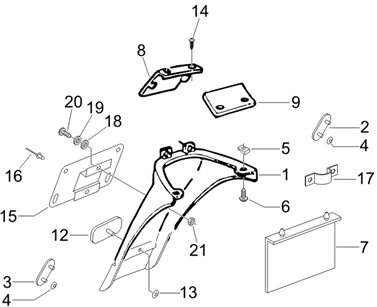

Châssis - parties plastiques - carrosseries : 02.37 COUVERCLE ARRIÈRE - PARE-BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/113/Typhoon_50_2T_E2_2009-2010_02.37.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/6/8/1/img/77681.jpg)
1 |
MUDGUARD - REAR "PIAGGIO GENUINE PART" 50 TYPHOON 1997>2009 BLACK -292900000C More informationQuantity required : 1 |
||||||
2 |
295984 - CATA AR D More informationQuantity required : 1 |
||||||
|
3 |
295983 - CATA AR G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/0/7/8/img/77078.jpg)
4 |
259539 - CLIPS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
5 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
6 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/8/2/7/img/77827.jpg)
7 |
BATTERY BACK PROTECTION - CHROME "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON, NRG 1995>2000 -295403 More informationQuantity required : 1 |
||||||
|
8 |
9234905 - PARTIE AR SUP NOIR 94 EX.923435 More informationQuantity required : 1 |
||||||
|
9 |
9235005090 - PARTIE AR INF More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/5/6/6/img/85566.jpg)
12 |
638745 - CATADIOPTRE AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/7/img/65797.jpg)
13 |
181351 - PLAQUETTE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
14 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 4 |
||||||
|
15 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/1/2/img/67812.jpg)
15 |
LICENSE PLATE HOLDER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -638833 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/4/1/2/img/77412.jpg)
16 |
273074 - RIVET More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.jpg)
17 |
231590 - CLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
18 |
013763 - PLAQUETTE S01376300 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
19 |
WASHER (4,2X7,6X0,9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -016404 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
20 |
015996 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
21 |
020104 - ECROU S02010400 More informationQuantity required : 3 |
