Vehicle Exploded View - PIAGGIO TYPHOON 50 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

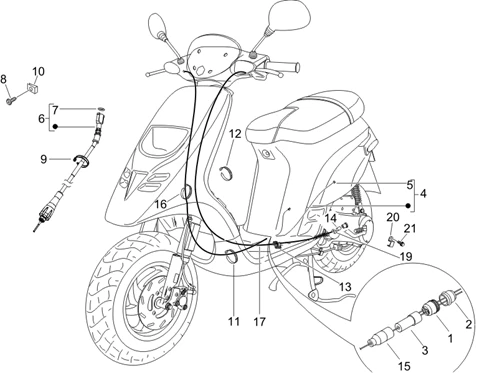

Instalation du freins - transmisisons : 05.03 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/112/Typhoon_50_2007-2008_05.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/3/img/66083.jpg)
1 |
THROTTLE CONTROL SPLITTER "PIAGGIO GENUINE PART" 50 ZIP, FLY, LIBERTY, NRG/GILERA 50 STALKER, RUNNER (3 PARTS KIT WITHOUT PROTECTIONS) -269571 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/8/img/66108.jpg)
2 |
SPLITTER LOWER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -271976 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/9/img/66109.jpg)
3 |
SPLITTER UPPER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -271977 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/7/6/1/img/81761.jpg)
4 |
THROTTLE CABLE KIT (DISPATCHER TO OIL PUMP) "PIAGGIO GENUINE PARTS" 50 TYPHOON 2006>2010/GILERA 50 DNA -582449 More informationQuantity required : 1 |
||||||
5 |
114256 - TERMINALE *** More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/6/7/1/img/86671.jpg)
6 |
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" 50 TYPHOON 2006>2010 -647118 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/3/img/63833.jpg)
7 |
006716 - JOINT S00671600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
8 |
SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836 More informationQuantity required : 1 |
||||||
|
9 |
647127 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
11 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
12 |
257134 - COLLIER More informationQuantity required : 2 |
||||||
|
13 |
217280 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/4/img/65794.jpg)
14 |
REAR BRAKE ADJUSTER PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -179640 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/4/img/66084.jpg)
15 |
CASIND END FOR DISPATCHER "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTERS 50CC 2 STROKE -269572 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/3/0/img/67230.jpg)
16 |
581767 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/3/0/5/img/77305.jpg)
17 |
REAR BRAKE CABLE KIT "PIAGGIO GENUINE PARTS" 50 TYPHOON 1995>2010, NRG 1995>2000 -270993 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/1/img/66051.jpg)
19 |
BUSH FOR BRAKE CABLE "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER+ MAXISCOOTER -266040 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/9/img/67059.jpg)
20 |
FIXING PLATE FOR BRAKE CABLE ON CRANKCASE "PIAGGIO GENUINE PART" FLY, LIBERTY, TYPHOON, NRG, ZIP/ VESPA LX, SPRINT, S -564497 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
21 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774 More informationQuantity required : 1 |
||||||
|
21 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774 More informationQuantity required : 1 |
