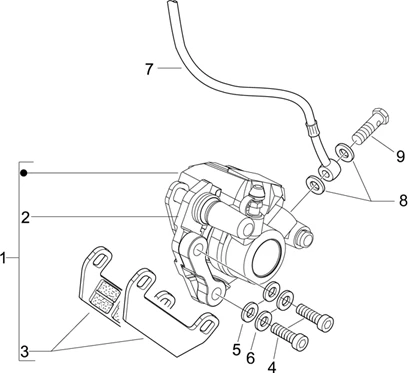

Vehicle Exploded View - PIAGGIO TYPHOON 50 2007-2008 PIAGGIO

Instalation du freins - transmisisons : 05.01 TUYAUS DU FREINS ETRIERS DE FREIN
Tuyaus du freins etriers de frein
Search
FRONT BRAKE CALIPER "PIAGGIO GENUINE PART" 50 NRG POWER 2006>, TYPHOON 2006>2009, 125 TYPHOON 1196>2003/GILERA 50 STALKER, RUNNER -600734

1
P2R reference P2R reference 82923
Maker reference Maker reference 600734

FRONT BRAKE CALIPER "PIAGGIO GENUINE PART" 50 NRG POWER 2006>, TYPHOON 2006>2009, 125 TYPHOON 1196>2003/GILERA 50 STALKER, RUNNER -600734

More information

Quantity required : 1

600735 - SUPPORT

2
P2R reference P2R reference 82924
Maker reference Maker reference 600735

600735 - SUPPORT

More information

Quantity required : 1

BRAKE PADS - "PIAGGIO GENUINE PART" 50 NRG POWER 2007> FRONT/GILERA 50 STALKER FRONT (PAIR) -647171

3
P2R reference P2R reference 68011
Maker reference Maker reference 647171

BRAKE PADS - "PIAGGIO GENUINE PART" 50 NRG POWER 2007> FRONT/GILERA 50 STALKER FRONT (PAIR) -647171

More information

Quantity required : 1

SCREW - 8X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015792

4
P2R reference P2R reference 65396
Maker reference Maker reference 0157925

SCREW - 8X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015792

More information

Quantity required : 2

003058 - RONDELLE S00305800

5
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

003058 - RONDELLE S00305800

More information

Quantity required : 2

WASHER (13,75x8,15x4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408

6
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408

More information

Quantity required : 2

601252 - TUYAU DE FREIN NRG EXTREME

7
P2R reference P2R reference 82979
Maker reference Maker reference 601252

601252 - TUYAU DE FREIN NRG EXTREME

More information

Quantity required : 1

COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927

8
P2R reference P2R reference 65723
Maker reference Maker reference 127927

COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927

More information

Quantity required : 2

SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451

9
P2R reference P2R reference 66050
Maker reference Maker reference 265451

SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451

More information

Quantity required : 1
