Vehicle Exploded View - PIAGGIO TYPHOON 50 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

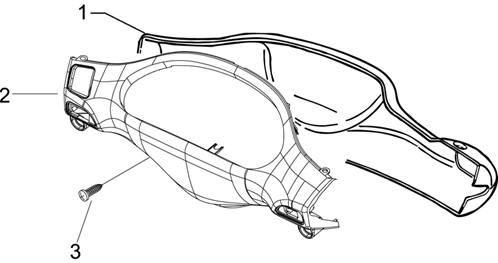

Guidon/direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/111/Typhoon_50_2006-2008_03.01.PNG)
1 |
CM061103 - COUV. GUIDON More informationQuantity required : 1 |
||||||
|
1 |
CM0611030090 - COUV. GUIDON More informationQuantity required : 1 |
||||||
|
1 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/9/7/0/img/77970.jpg)
2 |
298148000C - CACHE DIRECTION INT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/8/img/66068.jpg)
3 |
SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/5/0/7/img/81507.jpg)
4 |
WIND SHIELD "PIAGGIO GENUINE PART" NRG EXTREME -581093 More informationQuantity required : 1 |
||||||
|
5 |
WIND SHIELD "PIAGGIO GENUINE PART" NRG EXTREME -581093 More informationQuantity required : 1 |
||||||
|
6 |
LOGO NRG |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/4/1/0/img/83410.jpg)
6 |
6200140038 - LOGO PIAGGIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/4/img/67204.jpg)
7 |
BUSH FOR WIND SHIELD "PIAGGIO GENUINE PART" 50 NRG, TYPHOON 2005>, 300 YOURBAN/GILERA 50 RUNNER 2005> -581174 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/5/1/6/img/81516.jpg)
8 |
581175 - VIS More informationQuantity required : 4 |
