Vehicle Exploded View - PIAGGIO TYPHOON 50 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

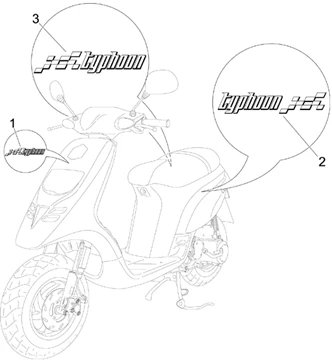

Châssis - parties plastiques - carrosseries : 02.38 MONOGRAMMES DECORATIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/111/Typhoon_50_2006-2008_02.38.PNG)
Search
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/0/3/6/img/85036.jpg)
1 |
DECAL "TYPHOON" ON FRONT SHIELD "PIAGGIO GENUINE PART" 50 TYPHOON 2006>2010 -624318 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/0/3/5/img/85035.jpg)
2 |
DECAL "TYPHOON" ON REAR LEFT COWL "PIAGGIO GENUINE PART" 50 TYPHOON 2006>2010 -624317 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/0/3/4/img/85034.jpg)
3 |
DECAL "TYPHOON" ON REAR RIGHT COWL "PIAGGIO GENUINE PART" 50 TYPHOON 2006>2010 -624316 More informationQuantity required : 1 |
