Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 1100 RF E4 ABS 2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

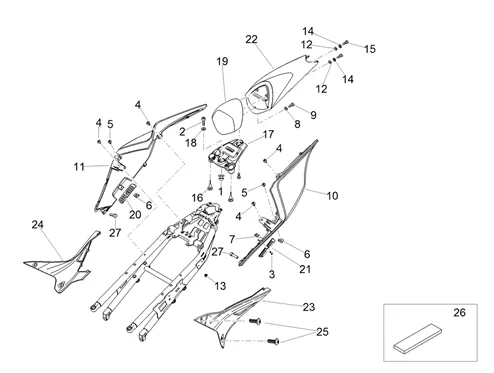

Cadre : 28.12 CARROSSERIE POSTERIEURE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/914/Tuono_V4_1100_RF_E4_ABS_2018_(EMEA)_28.12.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/9/6/3/img/41963.jpg)
1 |
PIVOT MOUNTING OEM APRILIA COMMON A LA RANGE-893259 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
2 |
SCREW BTR (4X10) OEM PIAGGIO COMMON A LA RANGE-AP8152043 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/2/img/46742.jpg)
3 |
SCREW BTR HEAD BOMBEE (4X14) OEM PIAGGIO COMMON A LA RANGE-AP8121184 More informationQuantity required : 2 |
|||||||||
4 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
4 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/3/img/71903.jpg)
5 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-AP8150538 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
6 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
7 |
NUT SHEET METAL (M4) OEM PIAGGIO COMMON A LA RANGE-AP8102381 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/1/img/71771.jpg)
8 |
WASHER NYLON (4X9X0. 8)) OEM PIAGGIO COMMON A LA RANGE-AP8144565 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
9 |
SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421 More informationQuantity required : 1 |
|||||||||
|
10 |
2H002241000XN2-TAIL G. More informationQuantity required : 1 |
|||||||||
|
11 |
2H002240000XN2-TAIL DRT. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/6/img/71406.jpg)
12 |
WASHER PLATE (D5) OEM PIAGGIO COMMIUN A LA RANGE-AP8120592 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
13 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
14 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
15 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/5/img/72275.jpg)
16 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8220238 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/0/3/img/40603.jpg)
17 |
BASE COVER-SEAT OEM APRILIA 50-125 RS 2011 >-858838 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
18 |
WASHER PLATE (4X9) OEM PIAGGIO COMMON A LA RANGE-AP8150158 More informationQuantity required : 1 |
|||||||||
|
19 |
893112-COUSSIN More informationQuantity required : 1 |
|||||||||
|
20 |
893108-GRILLE RIGHT More informationQuantity required : 1 |
|||||||||
|
21 |
893109-GRILLE LEFT More informationQuantity required : 1 |
|||||||||
|
22 |
2H001595000XN2-COVER-SEAT More informationQuantity required : 1 |
|||||||||
|
23 |
2B003815-SIDE PANEL G. More informationQuantity required : 1 |
|||||||||
|
24 |
2B003816-BODY PANEL DRT. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/7/img/70837.jpg)
25 |
SCREW BTR (5X12) DE FAIRING OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI V7-V9-896174 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/1/img/71411.jpg)
26 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X280MM OEM PIAGGIO COMMON A LA RANGE-AP8120657 More informationQuantity required : 1 |
|||||||||
|
27 |
AP8202058-RIVET EN PLASTIC BLACK More informationQuantity required : 2 |
|||||||||
