Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 1100 RF E4 ABS 2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

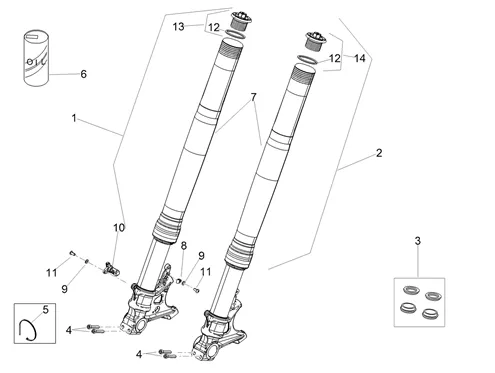

Cadre : 28.06 FOURCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/914/Tuono_V4_1100_RF_E4_ABS_2018_(EMEA)_28.06.png)
1 |
2B003406 - TIGE DROITE More informationQuantity required : 1 |
||||||
|
2 |
2B003405-ROD LEFT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/4/4/1/img/156441.jpg)
3 |
SET OF JOINTS FORK FRONT OEM PIAGGIO APRILIA 1000-1100 RSV-2, RSV-4, TUONO V2, TUONO V4-2B006021 More informationQuantity required : 1 |
||||||
|
4 |
2B006022-SCREW More informationQuantity required : 4 |
||||||
|
5 |
AP8102386-FASCETTA IN NYLON NERA More informationQuantity required : 1 |
||||||
|
6 |
AP8116071-OIL FORK 1LT More informationQuantity required : 1 |
||||||
|
7 |
2B006020-FOURREAU More informationQuantity required : 2 |
||||||
|
8 |
B046190-GUIDE-CABLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/2/img/71832.jpg)
9 |
WASHER PLATE (5. 3X10X1) OEM PIAGGIO COMMON A LA RANGE-AP8150177 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
10 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
||||||
|
10 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
11 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267 More informationQuantity required : 1 |
||||||
|
12 |
2B005852-GASKET SPIE More informationQuantity required : 2 |
||||||
|
13 |
2B006019-TAPÓN More informationQuantity required : 1 |
||||||
|
14 |
2B006017-CAP More informationQuantity required : 1 |
