Vehicle Exploded View - APRILIA TUONO 660 Tuono 660 4T 8V E5 Factory ABS 2022-23 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

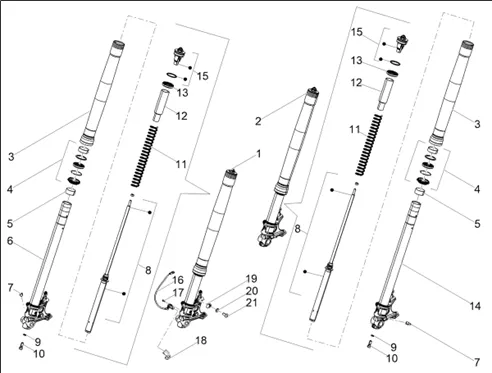

Suspensions : 04.04 FOURCHE AV. KAYABA
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1192/Tuono_660_4T_8V_E5_Factory_ABS_2022-23_(EMEA)_04.04.png)
1 |
2B009332-ROD RIGHT CPL. More informationQuantity required : 1 |
||||||
|
2 |
2B009333-ROD LEFT CPL. More informationQuantity required : 1 |
||||||
|
3 |
2B008001 OUTER TUBE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/7/9/9/img/145799.jpg)
4 |
SET OF JOINTS SPI FORK OEM PIAGGIO APRILIA 900 SHIVER 2017 >, 660 RS, TUONO 2020 >-2B004402 More informationQuantity required : 2 |
||||||
|
5 |
2B004403-BUSH DE COULISSEMENT More informationQuantity required : 2 |
||||||
|
6 |
2B010480-ROD + DOOR-WHEEL D More informationQuantity required : 1 |
||||||
|
7 |
2B010481-SCREW OF RÃ - GLAGE More informationQuantity required : 2 |
||||||
|
8 |
2B010477-ELÃ - M. POMPAGE CPL More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/0/2/img/145802.jpg)
9 |
WASHER PLATE DE FORK KAYABA OEM PIAGGIO APRILIA 660 TUONO-2B004406 More informationQuantity required : 2 |
||||||
|
10 |
2B010478-SCREW More informationQuantity required : 2 |
||||||
|
11 |
2B007910 SPRING More informationQuantity required : 2 |
||||||
|
12 |
2B004421-HOSE PRECHARGE More informationQuantity required : 2 |
||||||
|
13 |
2B004422-WASHER More informationQuantity required : 2 |
||||||
|
14 |
2B010479-ROD + DOOR-WHEEL G More informationQuantity required : 1 |
||||||
|
15 |
2B007996 COMPLETE RH PLUG More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
16 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
17 |
SCREW BTR HEAD BOMBEE (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152268 More informationQuantity required : 1 |
||||||
|
18 |
2B009302-ABS SENSOR CABLE HOLDER More informationQuantity required : 1 |
||||||
|
19 |
B046190-GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/2/img/71832.jpg)
20 |
WASHER PLATE (5. 3X10X1) OEM PIAGGIO COMMON A LA RANGE-AP8150177 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
21 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267 More informationQuantity required : 1 |
