Vehicle Exploded View - APRILIA TUONO 660 Tuono 660 4T 8V E5 Factory ABS 2022-23 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

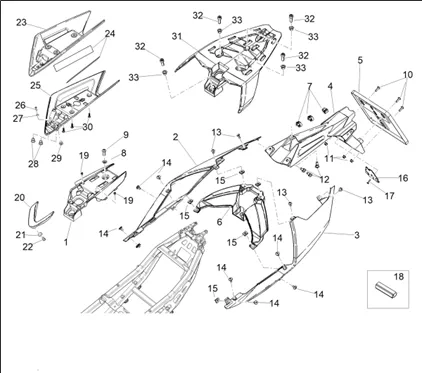

Carrosserie : 02.14 CARROSSERIE POSTERIEURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1192/Tuono_660_4T_8V_E5_Factory_ABS_2022-23_(EMEA)_02.14.png)
1 |
2B008408-SADDLE COVER LOCKUP More informationQuantity required : 1 |
||||||
|
2 |
FAIRING LATERAL REAR RIGHT BLACK COMPETITION OEM APRILIA TUONO/RS 660 E5/E5 +-2B006647000XN2 More informationQuantity required : 1 |
||||||
|
2 |
FAIRING LATERAL REAR RIGHT OEM APRILIA TUONO 660 FACTORY E5 2022-2024 (DARK)-2B006647000XN5 More informationQuantity required : 1 |
||||||
|
2 |
2B006647 MUD FLAP D More informationQuantity required : 1 |
||||||
|
3 |
2B006648000XN2-MUD FLAP ARRIÃ ¨ RE G V. BLACK COMPÃ - TITION More informationQuantity required : 1 |
||||||
|
3 |
2B006648000XN5-TAIL G, BLACK More informationQuantity required : 1 |
||||||
|
3 |
2B006648 MUD FLAP G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/5/2/5/img/171525.jpg)
4 |
BRACKET DE PLATE IMMATRICULATION OEM APRILIA 660 RS, TUONO 2020 >-2B006649 More informationQuantity required : 1 |
||||||
|
5 |
895914-DOOR-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/8/3/6/img/174836.jpg)
6 |
MUD FLAP REAR INTERNE OEM APRILIA 660 RS, TUONO 2020 >-2B007364 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/0/img/72140.jpg)
7 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8201727 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/3/img/71433.jpg)
8 |
WASHER EN T (8. 2X12X4) FOR SCREW OF 6 OEM PIAGGIO COMMON A LA RANGE-AP8121096 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/4/5/img/50945.jpg)
9 |
SCREW BTR HEAD BOMBEE (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152058 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
10 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
11 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/7/img/73367.jpg)
12 |
SCREW TORX (6X22) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179302 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/7/img/70837.jpg)
13 |
SCREW BTR (5X12) DE FAIRING OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI V7-V9-896174 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
14 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
15 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/8/3/8/img/174838.JPG)
16 |
2B006641 LICENSE PLATE INTERNAL COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
17 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 1 |
||||||
|
18 |
2B008368 ADHESIVE GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/6/img/72286.jpg)
19 |
RUBBER/BUFFER CHAMPIGNON OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8220488 More informationQuantity required : 2 |
||||||
|
20 |
2B008421-SADDLE COVER LOCKUP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/6/img/71806.jpg)
21 |
WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMU A LA RANGE-AP8150013 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
22 |
SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509 More informationQuantity required : 1 |
||||||
|
23 |
2B006997000XN2-COVER-SEAT, BLACK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/1/2/8/img/176128.jpg)
23 |
COVER SEAT OEM APRILIA 660 RS 2022 >, 1100 RSV4 2021 >-2B006997 More informationQuantity required : 1 |
||||||
|
23 |
2B006997000XHG-COVER-SEAT, GREY More informationQuantity required : 1 |
||||||
|
24 |
STICKER/STICKER/GRAPHIC CAPOT SEAT OEM APRILIA RS 660 2022 > TUONO 660 2022 > 2024-2B008298 More informationQuantity required : 2 |
||||||
|
25 |
2B006996000XR4-BASE COVER-SEAT More informationQuantity required : 1 |
||||||
|
25 |
2B006996 BASE COVER-SEAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/2/7/9/img/176279.jpg)
25 |
BASE COVER-SEAT OEM APRILIA RSV4 1100 E5, TUONO 660 BLACK 2021 >-2B006996000XN2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/2/img/46742.jpg)
26 |
SCREW BTR HEAD BOMBEE (4X14) OEM PIAGGIO COMMON A LA RANGE-AP8121184 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/8/4/img/97084.jpg)
27 |
WASHER ELASTIC COURBE (5. 3X10X0. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150272 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/7/img/71747.jpg)
28 |
BUTEE RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8144087 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/9/6/3/img/41963.jpg)
29 |
PIVOT MOUNTING OEM APRILIA COMMON A LA RANGE-893259 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/0/img/96280.jpg)
30 |
SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178606 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/5/2/4/img/171524.jpg)
31 |
GRIP REAR OEM APRILIA 600 RS, TUONO 2020 >-2B006651 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/4/7/7/img/178477.jpg)
32 |
SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-2B002570 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/8/3/7/img/174837.jpg)
33 |
BUSH EN T (D8) OEM PIAGGIO COMMON A LA RANGE-2B007778 More informationQuantity required : 3 |
