Vehicle Exploded View - APRILIA TUONO 660 Tuono 660 4T 8V E5 ABS 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

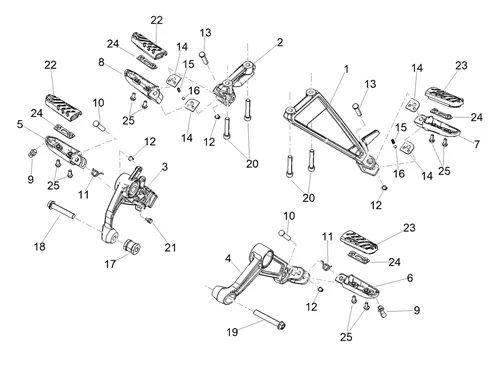

Chassis : 01.02 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/976/Tuono_660_4T_8V_E5_ABS_2021_(EMEA)_01.02.png)
1 |
BRACKET FOOTREST LEFT PASSENGER OEM PIAGGIO APRILIA RS 660-TUONO 660 > 2020-2B010850 More informationQuantity required : 1 |
|||||||||
|
1 |
BRACKET FOOTREST LEFT PASSENGER OEM PIAGGIO APRILIA RS 660-TUONO 660 > 2020-2B010850 More informationQuantity required : 1 |
|||||||||
|
2 |
BRACKET FOOTREST RIGHT PASSENGER OEM PIAGGIO APRILIA RS 660-TUONO 660-2B010851 More informationQuantity required : 1 |
|||||||||
|
2 |
BRACKET FOOTREST RIGHT PASSENGER OEM PIAGGIO APRILIA RS 660-TUONO 660-2B010851 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/4/9/4/img/171494.jpg)
3 |
PLATINE FOOTREST PILOTE RIGHT OEM APRILIA 660 RS 2020 >-2B005203 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/4/9/5/img/171495.jpg)
4 |
PLATINE FOOTREST PILOTE LEFT OEM APRILIA 660 RS 2020 >-2B005202 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/8/9/img/71789.jpg)
5 |
RIGHT RIDER FOOTREST "PIAGGIO GENUINE PART" MOTO-GUZZI BREVA, STELVIO, GRISO, NORGE, V7, V9, BELLAGIO/APRILIA 750-900 SHIVER, 50-125 TUONO, 650 PEGASO -AP81450345 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/5/5/2/0/img/175520.jpg)
6 |
2B006169 - R-PIED PILOTE G More informationQuantity required : 1 |
|||||||||
|
6 |
2B006169 - R-PIED PILOTE G More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/3/1/4/img/203314.jpg)
7 |
PASSENGER FOOTREST RIGHT OEM PIAGGIO APRILIA 750 SHIVER 2007 > 900 SHIVER 2017 >, 900 DORSODURO2017 >, 125 TUONO 2017 >, 650 PEGASO 2005 >, 1200 CAPONORD 2014 >, 850 MANA 2007 >-2B010340 More informationQuantity required : 1 |
|||||||||
|
7 |
PASSENGER FOOTREST RIGHT OEM PIAGGIO APRILIA 750 SHIVER 2007 > 900 SHIVER 2017 >, 900 DORSODURO2017 >, 125 TUONO 2017 >, 650 PEGASO 2005 >, 1200 CAPONORD 2014 >, 850 MANA 2007 >-2B010340 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/8/9/9/img/49899.jpg)
8 |
PASSENGER FOOTREST LEFT OEM PIAGGIO APRILIA 750 SHIVER 2007 > 900 SHIVER 2017 >, 900 DORSODURO2017 >, 125 TUONO 2017 >, 650 PEGASO 2005 >, 1200 CAPONORD 2014 >, TUAREG 660 2021-2023-AP8145009 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/8/img/71438.jpg)
9 |
PIVOT FRICTION REST-FOOT OEM PIAGGIO COMMON A LA RANGE MOTO-AP8121134 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/3/img/71473.jpg)
10 |
PIVOT REST-FEET OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI/APRILIA-AP8121567 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/0/img/72310.jpg)
11 |
SPRING FOOTREST PILOTE OEM PIAGGIO MOTO-GUZZI BREVA, NORGE, STELVIO, V7, V9, V85/APRILIA 750-900 SHIVER-AP8221277 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/1/img/71981.jpg)
12 |
CLIPS/CIRCLIPS (D-8) OEM PIAGGIO COMMON A LA RANGE-AP8152409 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/2/img/71472.jpg)
13 |
PIVOT REST-FOOT (8X36) OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8121566 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/0/3/img/71703.jpg)
14 |
PLATE FDC PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE-AP8134451 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
15 |
SPRING DE MAINTIEN FOOTREST OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121133 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/4/img/71274.jpg)
16 |
BILLE D. 7 OEM PIAGGIO COMMON A LA RANGE-AP8110110 More informationQuantity required : 2 |
|||||||||
|
17 |
2B006346 SPACER BUSH More informationQuantity required : 1 |
|||||||||
|
18 |
SCREW FLANGE TH (10X55) OEM PIAGGIO COMMON A LA RANGE-AP8152410 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/3/7/6/img/42376.jpg)
19 |
SCREW FLANGE TH (10X65) OEM PIAGGIO COMMON A LA RANGE-895845 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/7/img/71827.jpg)
20 |
SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-AP8150164 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/7/2/8/img/40728.jpg)
21 |
SCREW PIVOT MOUNTING SPRING OEM PIAGGIO COMMON A LA RANGE-859946 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/7/5/img/73475.jpg)
22 |
RUBBER OF REST FOOT RIGHT OEM PIAGGIO MOTO-GUZZI NORGE, BREVA, STELVIO, BELLAGIO, V7, NEVADA/APRILIA SHIVER, PEGASO, DORSODURO-GU32443210 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/7/6/img/73476.jpg)
23 |
RUBBER OF REST FOOT LEFT OEM PIAGGIO MOTO-GUZZI NORGE, BREVA, STELVIO, BELLAGIO, V7, NEVADA/APRILIA SHIVER, PEGASO, DORSODURO-GU32443211 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/7/1/img/73471.jpg)
24 |
PLATE OF REST FOOT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-GU32441210 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
25 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 8 |
|||||||||
All the exploded views of this vehicle
-
