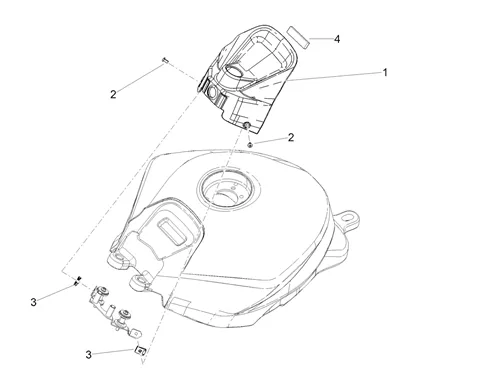

Carrosserie : 02.09 COUVRE-RÉSERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/976/Tuono_660_4T_8V_E5_ABS_2021_(EMEA)_02.09.png)
1 |
2B006630 HABILLAGE TANK More informationQuantity required : 1 |
||||||
|
1 |
COVER TANK OEM APRILIA 660 RS E5 + 2025 (BLUE MARLIN)-2B006630000XR4 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/1/img/50961.jpg)
2 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-AP8152171 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
3 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/9/2/5/img/40925.jpg)
4 |
ADHESIF MOUSSE ORGINE APRILIA COMMON A LA RANGE-860447 More informationQuantity required : 1 |
