Vehicle Exploded View - APRILIA TUONO 125 E5+ ABS 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

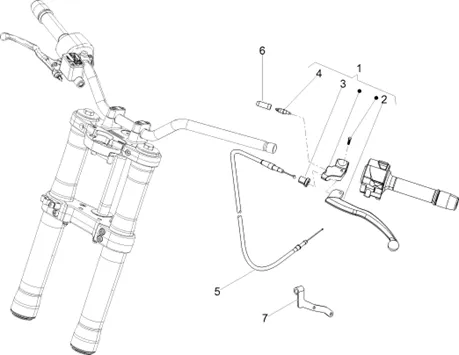

Guidon - commandes : 07.03 COMMANDE EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1301/Tuono_125_E5_ABS_2025_(EMEA)_07.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/7/6/3/img/145763.jpg)
1 |
GRIP CLUTCH OEM APRILIA 125 TUONO 2017 >-2B004137 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/4/0/7/img/149407.jpg)
2 |
LEVER CLUTCH OEM APRILIA 125 TUONO 2017 >-2B004729 More informationQuantity required : 1 |
||||||
3 |
00H00903351-CLAMP FIX ELIERIE More informationQuantity required : 1 |
||||||
|
4 |
2R000321-INTERRUPTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/6/7/2/img/145672.jpg)
5 |
CABLE/CONTROL/TRANSMISSION CLUTCH OEM APRILIA 125 TUONO 2017 >-2B003775 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/0/img/72270.jpg)
6 |
RUBBER CONTACTEUR DE STOP OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT 2018 >-AP8220135 More informationQuantity required : 1 |
||||||
|
7 |
873566-BUTEE DE BEARING More informationQuantity required : 1 |
