Vehicle Exploded View - APRILIA TUONO 125 E5+ ABS 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

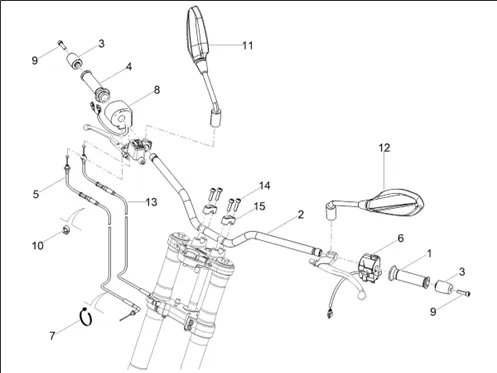

Guidon - commandes : 07.02 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1301/Tuono_125_E5_ABS_2025_(EMEA)_07.02.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/5/5/img/63955.jpg)
1 |
REVETEMENT DE GRIP LEFT OEM PIAGGIO 50-125 RS4 2011 >, 125 TUONO 2017 >-00G00909071 More informationQuantity required : 1 |
||||||
2 |
HANDLEBAR OEM APRILIA 125 TUONO 2017 >-2B003582 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/7/1/img/70171_20260526172834.jpg)
3 |
HANDLEBAR END OEM PIAGGIO APRILIA 50-125 RS4 2011 >, 50-125 TUONO 2017 > BLACK-866233 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/7/2/img/70172.jpg)
4 |
THROTTLE GRIP (SLEEVE) OEM PIAGGIO APRILIA 50-125 RS 2011 >, TUONO 2017 >-866266 More informationQuantity required : 1 |
||||||
|
5 |
2B008324 OPEN GAS CONTROL TRASMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/1/img/71571.jpg)
6 |
AP8124918-DEVIATEUR FEUX GCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/1/img/71411.jpg)
7 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X280MM OEM PIAGGIO COMMON A LA RANGE-AP8120657 More informationQuantity required : 2 |
||||||
|
8 |
2B008489 ELETTRICAL DEVICE HANDLEBAR RIGHT SIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/4/8/6/img/177486.jpg)
9 |
SCREW BTR (5X50) OEM PIAGGIO COMMON A LA RANGE-2B002580 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/0/img/72140.jpg)
10 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8201727 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/3/7/8/img/203378.jpg)
11 |
RIGHT MIRROR OEM MOTO GUZZI V100 2022 >, STELVIO 2024-2B010978 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/3/7/9/img/203379.jpg)
12 |
LEFT MIRROR OEM MOTO GUZZI V100 2022 >, STELVIO 2024-2B010979 More informationQuantity required : 1 |
||||||
|
13 |
2B008325 CLOSE GAS CONTROL TRASMISSION More informationQuantity required : 1 |
||||||
|
14 |
B043044-SCREW More informationQuantity required : 4 |
||||||
|
15 |
2B008816 HANDLEBAR BRACKET More informationQuantity required : 2 |
