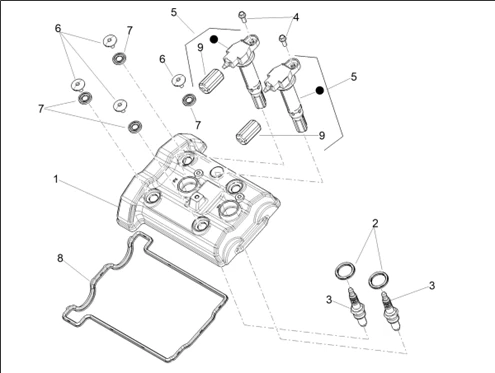

Moteur : 03.09 COUVERCLE CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1232/Tuareg_660_E5_ABS_2024_(EMEA-GSO)_03.09.png)
1 |
1A019263 HEAD COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/5/6/0/img/171560.jpg)
2 |
GASKET PUIT SPARK PLUG OEM APRILIA 660 RS, TUONO, TUAREG 2020 >-1A012849 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/1/3/5/7/img/161357.jpg)
3 |
SPARK PLUG IRIDIUM MR9DI-7 OEM PIAGGIO 1100 RSV4, TUONO 1100, 660 RS, 660 TUONO-1A015311 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/5/img/70535.jpg)
4 |
SCREW TH BRIDEE M6X16 OEM PIAGGIO COMMON A LA RANGE-874555 More informationQuantity required : 2 |
||||||
|
5 |
1A0221185 COMPLETE " H. T. " COIL More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/4/img/69224.jpg)
6 |
SCREW SPECIALE COVER DE CYLINDER HEAD OEM APRILIA 660 RS, TUAREG, TUONO/750-900 SHIVER, DORSODURO/1200 DORSODURO, CAPONORD-842291 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/9/4/3/img/42943.jpg)
7 |
GASKET SCREW COVER DE CYLINDER HEAD OEM PIAGGIO FOR APRILIA 660 RSV, TUONO 2020 >, 1000 RSV-4 2011 >, 1100 RSV-4 2019 >, 1000 TUONO 2011 >, 1100 TUONO 2015 >-898410 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/5/6/1/img/171561.jpg)
8 |
GASKET COVER DE CYLINDER HEAD OEM PIAGGIO 660 APRILIA RS, TUONO 2020 >-1A011919 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/2/5/0/img/86250.jpg)
9 |
NOYAU EMI OEM APRILIA COMMON A LA RANGE-641815 More informationQuantity required : 1 |
