Vehicle Exploded View - APRILIA TUAREG 660 Tuareg 660 E5 ABS 2024 (EMEA-GSO)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

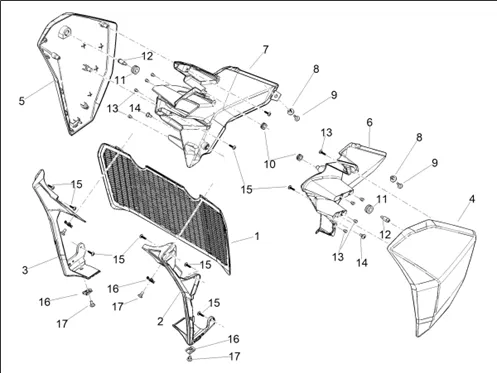

Carrosserie : 02.08 CARÈNE LATERAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1232/Tuareg_660_E5_ABS_2024_(EMEA-GSO)_02.08.png)
1 |
2B008834 GRILLE RADIATOR More informationQuantity required : 1 |
||||||
|
2 |
2B009004 LH RADIATOR GRILLE CLOSURE More informationQuantity required : 1 |
||||||
|
3 |
2B009003 RH RADIATOR GRILLE CLOSURE More informationQuantity required : 1 |
||||||
|
4 |
2B008828000XB3-TRANSPORTEUR LEFT P. WHITE More informationQuantity required : 1 |
||||||
|
4 |
2B008828000Q04-LEFT AIR INLET More informationQuantity required : 1 |
||||||
|
4 |
2B008828 LEFT AIR INLET More informationQuantity required : 1 |
||||||
|
4 |
2B008828000G26-TRANSPORTEUR LEFT P. GREY More informationQuantity required : 1 |
||||||
|
5 |
2B008827000G26-DUCT D, GRISE More informationQuantity required : 1 |
||||||
|
5 |
2B008827000XB3-TRANSPORTEUR RIGHT P. WHITE More informationQuantity required : 1 |
||||||
|
5 |
2B008827 RIGHT AIR INLET More informationQuantity required : 1 |
||||||
|
5 |
2B008827000Q04-RIGHT AIR INLET More informationQuantity required : 1 |
||||||
|
6 |
2B008830 EXTRACTEUR LEFT More informationQuantity required : 1 |
||||||
|
7 |
2B008829 EXTRACTEUR RIGHT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/3/img/71773.jpg)
8 |
RIVET FEMELLE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144563)-AP8144616 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/9/img/71769.jpg)
9 |
RIVET MALE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144616)-AP8144563 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/4/img/66744.jpg)
10 |
GUIDE CABLE (8X10X16) OEM PIAGGIO COMMON A TOUTE LA RANGE-487665 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
11 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 2 |
||||||
|
12 |
2B009427 ROD FILETEE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/6/img/72286.jpg)
13 |
RUBBER/BUFFER CHAMPIGNON OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8220488 More informationQuantity required : 8 |
||||||
|
14 |
2B009423 M5X12 TORX SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
15 |
SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
16 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
|
17 |
2B009423 M5X12 TORX SCREW More informationQuantity required : 4 |
