Vehicle Exploded View - APRILIA TUAREG 660 Tuareg 660 E5 ABS 2021-23 (EMEA-GSO)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

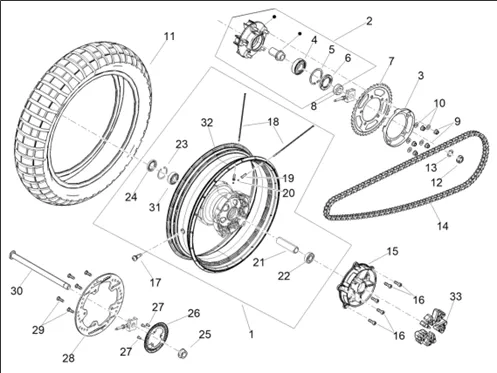

Roues : 05.02 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1231/Tuareg_660_E5_ABS_2021-23_(EMEA-GSO)_05.02.png)
1 |
2B006433 REAR SPOKED WHEEL MT 4. 25X18 More informationQuantity required : 1 |
||||||
|
1 |
2B009696-WHEEL ARRIÃ ¨ RE More informationQuantity required : 1 |
||||||
|
2 |
2B006613 DOOR-COURONNE CPL. More informationQuantity required : 1 |
||||||
|
3 |
2B009995 CHAIN PROTECTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/2/3/img/69023.jpg)
4 |
BEARING (30X62X16) REAR WHEEL OEM PIAGGIO 800 GP 2007 > 2011, 660 RS, TUONO 2020 > APRILIA-832848 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/7/img/63827.jpg)
5 |
CLIPS/CIRCLIPS (66X2) OEM PIAGGIO COMMON A LA RANGE-006662 More informationQuantity required : 1 |
||||||
|
6 |
2B006559 OIL SEAL GAT AS 40X62X7 NBR75 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/4/8/5/5/img/184855.jpg)
7 |
COURONNE 42 TEETH OEM APRILIA 660 TUAREG 2021 >-CM306203 More informationQuantity required : 1 |
||||||
|
8 |
2B006283 REAR WHEEL SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/0/6/5/img/127065.jpg)
9 |
NUT (M10X1. 25) OEM PIAGGIO COMMON A LA RANGE-2B002634 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/9/7/5/img/174975.JPG)
10 |
WASHER PLATE 10 2B007292 More informationQuantity required : 5 |
||||||
|
11 |
2B008450 TYRE REAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/4/7/img/47747.jpg)
12 |
NUT REAR WHEEL OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8125763 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/3/5/img/47735.jpg)
13 |
WASHER SPINDLE REAR WHEEL OEM APRILIA COMMON A LA RANGE-AP8125687 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/4/8/5/7/img/184857_20260403160433.jpg)
14 |
CHAIN DE TRANSMISSION OEM APRILIA 660 TUAREG 2021 >-2B009174 More informationQuantity required : 1 |
||||||
|
15 |
2B006428 FLANGE REAR WHEEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/7/8/2/img/140782.JPG)
16 |
2B002171-SCREW More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/6/img/72136.jpg)
17 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-AP8201546 More informationQuantity required : 1 |
||||||
|
18 |
2B006432 SPOKE More informationQuantity required : 40 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/2/9/4/5/img/172945.jpg)
19 |
NUT DE SPOKE WHEEL OEM MOTO GUZZI V85 E5/660 APRILIA TUAREG 2021 >-2B007846 More informationQuantity required : 40 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/9/8/img/50898.jpg)
20 |
STUD DE WHEEL OEM APRILIA 660 TUAREG, MOTO GUZZI V85TT-AP8150491 More informationQuantity required : 40 |
||||||
|
21 |
2B008141 SPACER DE FRONT WHEEL More informationQuantity required : 1 |
||||||
|
22 |
2B007580 BEARING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/5/img/63825.jpg)
23 |
CLIPS/CIRCLIPS (47X50. 5X1. 75) OEM PIAGGIO COMMON A TOUTE LA RANGE-006647 More informationQuantity required : 1 |
||||||
|
24 |
BUSH ETANCHEITE FRONT WHEEL (30X47X7) OEM APRILIA/MOTO GUZZI-AP8125841 More informationQuantity required : 1 |
||||||
|
25 |
2B006284 REAR WHEEL SPACER More informationQuantity required : 1 |
||||||
|
26 |
2B008686 PHONIC WHEEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/3/img/50963.JPG)
27 |
SCREW M6X12 OEM APRILIA COMMON A LA RANGE-AP8152186 More informationQuantity required : 3 |
||||||
|
28 |
2B006429 REAR BRAKE DISC More informationQuantity required : 1 |
||||||
|
29 |
2B008877 SCREW FIX. More informationQuantity required : 5 |
||||||
|
30 |
2B006435 STUD DE LA WHEEL More informationQuantity required : 1 |
||||||
|
31 |
2B007581 BALL BEARING 20X47X14 More informationQuantity required : 1 |
||||||
|
32 |
2B009695-RIM More informationQuantity required : 1 |
||||||
|
32 |
2B006431 4. 25X18 " RIM 40 SPOKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/6/3/1/img/171631.jpg)
33 |
RUBBER MOUNT SHOCK ABSORBER COURONNE REAR OEM APRILIA 660 RS, TUAREG, TUONO 2020 >-2B006242 More informationQuantity required : 1 |
