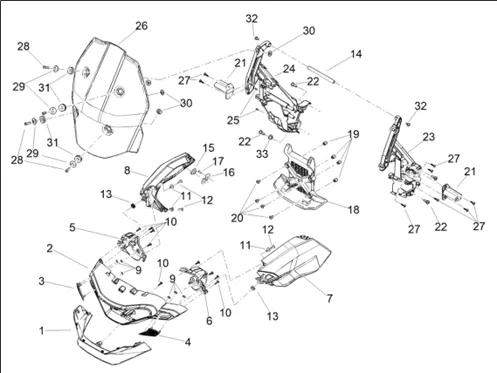

Carrosserie : 02.04 AVANT CARÈNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1231/Tuareg_660_E5_ABS_2021-23_(EMEA-GSO)_02.04.png)
1 |
2B008832000N18-SPOILER BLACK More informationQuantity required : 1 |
||||||
|
1 |
2B008832000L02 FRONT SPOILER More informationQuantity required : 1 |
||||||
|
1 |
2B008832000XR4 FRONT SPOILER More informationQuantity required : 1 |
||||||
|
1 |
2B008832 FRONT SPOILER More informationQuantity required : 1 |
||||||
|
2 |
2B008833000G15-SURROUND DE HEADLAMP More informationQuantity required : 1 |
||||||
|
2 |
2B008833 SURROUND DE HEADLAMP More informationQuantity required : 1 |
||||||
|
3 |
2B009043 RH AIR DUCT GRILLE More informationQuantity required : 1 |
||||||
|
4 |
2B009044 LH AIR DUCT GRILLE More informationQuantity required : 1 |
||||||
|
5 |
2B009118 RH HEADLIGHT BOX COVER More informationQuantity required : 1 |
||||||
|
6 |
2B009119 LH HEADLIGHT BOX COVER More informationQuantity required : 1 |
||||||
|
7 |
2B008836000D10-AIR INLET BODY SIDE More informationQuantity required : 1 |
||||||
|
7 |
2B008836000G15 AIR INLET BODY SIDE More informationQuantity required : 1 |
||||||
|
7 |
2B008836 HOSE D'AIR LEFT More informationQuantity required : 1 |
||||||
|
8 |
2B008835000D10-RIGHT AIR DUCT More informationQuantity required : 1 |
||||||
|
8 |
2B008835000G15 RIGHT AIR DUCT More informationQuantity required : 1 |
||||||
|
8 |
2B008835 HOSE D'AIR RIGHT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/7/img/65797.jpg)
9 |
PLATE ELASTIC OEM PIAGGIO COMMON A LA RANGE-181351 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
10 |
SCREW TORX (4X16) TARAUD FAIRING OEM PIAGGIO COMMON A LA RANGE-CM180701 More informationQuantity required : 13 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/3/img/71773.jpg)
11 |
RIVET FEMELLE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144563)-AP8144616 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/9/img/71769.jpg)
12 |
RIVET MALE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144616)-AP8144563 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/4/img/66744.jpg)
13 |
GUIDE CABLE (8X10X16) OEM PIAGGIO COMMON A TOUTE LA RANGE-487665 More informationQuantity required : 1 |
||||||
|
14 |
2B009281 BRACKET D'INSTRUMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/2/img/72272.jpg)
15 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8220162 More informationQuantity required : 2 |
||||||
|
16 |
2B009421 AIR DUCT FIXING More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
17 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267 More informationQuantity required : 2 |
||||||
|
18 |
2B008953 PROT. PANEL DE EDGE More informationQuantity required : 1 |
||||||
|
19 |
2B009270 BUSH SUPERIEURE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
20 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 4 |
||||||
|
21 |
2B008992 BRACKET DE INDICATOR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/5/9/img/151759.jpg)
22 |
SCREW FLANGE TH (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B004560 More informationQuantity required : 4 |
||||||
|
23 |
2B008236 - SUPPORT DROITE More informationQuantity required : 1 |
||||||
|
24 |
2B008235 - SUPPORT DROITE More informationQuantity required : 1 |
||||||
|
25 |
2B009107 RIVET A DECLIC More informationQuantity required : 2 |
||||||
|
26 |
2B008818 COUPOLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/8/img/96288.jpg)
27 |
SCREW TORX (5X22. 6) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM179101 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/7/img/71917.jpg)
28 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152137 More informationQuantity required : 4 |
||||||
|
29 |
2B009747-BUSH SPACER More informationQuantity required : 4 |
||||||
|
30 |
2B009271 WINDSHIELD FIXING BUSH More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/8/1/img/73481.jpg)
31 |
RUBBER 10X25 OEM PIAGGIO COMMON A LA RANGE-GU32577910 More informationQuantity required : 4 |
||||||
|
32 |
2B009423 M5X12 TORX SCREW More informationQuantity required : 2 |
||||||
|
33 |
2B010137-BUSH More informationQuantity required : 1 |
All the exploded views of this vehicle
-
