Vehicle Exploded View - APRILIA TUAREG 660 Tuareg 660 E5+ 2024 (EMEA-GSO)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

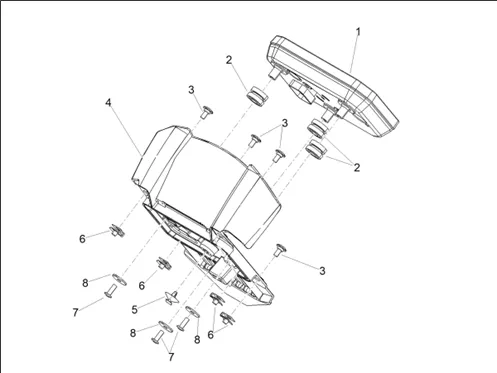

Feux - instruments : 08.02 INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1299/Tuareg_660_E5_2024_(EMEA-GSO)_08.02.png)
1 |
2D000925-PANEL DE EDGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
2 |
RUBBER SILENBLOC OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8220150 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
3 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 4 |
||||||
|
4 |
2B008379 DASHBOARD BRACKET More informationQuantity required : 1 |
||||||
|
5 |
890760-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
6 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
7 |
SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/7/img/71847.jpg)
8 |
WASHER PLATE (5X20X1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150255 More informationQuantity required : 3 |
