Vehicle Exploded View - APRILIA TUAREG 660 Tuareg 660 E5+ 2024 (EMEA-GSO)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

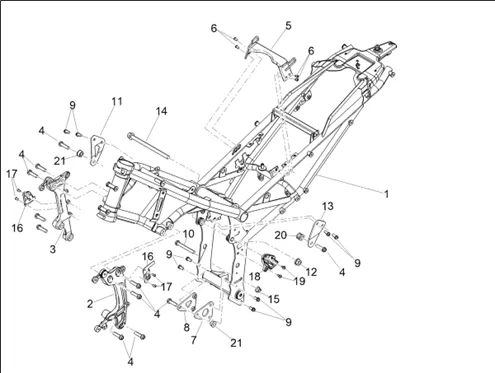

Châssis/coque : 01.01 CHÂSSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1299/Tuareg_660_E5_2024_(EMEA-GSO)_01.01.png)
1 |
2B013131000XR8-FRAME, RED More informationQuantity required : 1 |
||||||
|
2 |
PLATE DE FRAME LEFT GRISE OEM APRILIA 660 TUAREG 2021 >-2B010354 More informationQuantity required : 1 |
||||||
|
3 |
PLATE DE FRAME RIGHT GRISE OEM APRILIA 660 TUAREG 2021 >-2B010355 More informationQuantity required : 1 |
||||||
|
4 |
B043042-SCREW More informationQuantity required : 6 |
||||||
|
5 |
2B009110 GOUPILLE CENTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/5/img/71925.jpg)
6 |
SCREW BTR HEAD BOMBEE (6X10) OEM PIAGGIO COMMON A LA RANGE-AP8152175 More informationQuantity required : 4 |
||||||
|
7 |
2B009121 ENGINE LOWER LH. BRACKET More informationQuantity required : 1 |
||||||
|
8 |
2B009120 ENGINE LOWER RH. BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/0/6/2/img/139062.jpg)
9 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-2B002416 More informationQuantity required : 4 |
||||||
|
10 |
AP8152396-SCREW More informationQuantity required : 1 |
||||||
|
11 |
2B012735-RH. ENGINE PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
12 |
NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740 More informationQuantity required : 1 |
||||||
|
13 |
2B012736-PLATE More informationQuantity required : 1 |
||||||
|
14 |
2B009065 PIVOT ENGINE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
15 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 1 |
||||||
|
16 |
2B009420 BRACKET PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/7/img/71857.jpg)
17 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-AP8150298 More informationQuantity required : 2 |
||||||
|
18 |
2B009722-CHAIN SLIDE More informationQuantity required : 1 |
||||||
|
19 |
2B003422-SCREW More informationQuantity required : 1 |
||||||
|
20 |
2B009072-BUSH More informationQuantity required : 1 |
||||||
|
21 |
2B009807 FRAME SCREW SPACER More informationQuantity required : 2 |
