Vehicle Exploded View - APRILIA SXV 550 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

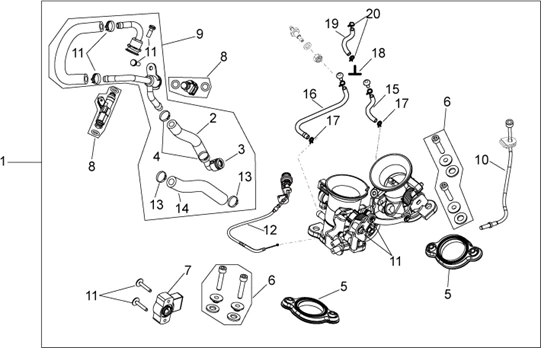

Moteur : 29.54 CORPS À PAPILLON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/642/SXV_550_2008_29.54.PNG)
1 |
853519 - CORPS A PAPILLON CPL. More informationQuantity required : 1 |
||||||
|
1 |
853520 - CORPS A PAPILLON CPL. More informationQuantity required : 1 |
||||||
|
1 |
855213-BODY A THROTTLE BODY CPL. More informationQuantity required : 1 |
||||||
|
1 |
855214 - CORPS A PAPILLON CPL. More informationQuantity required : 1 |
||||||
|
2 |
855947 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
2 |
AP9100709 - TUBO POMPA BENZINA 7,5X14,5 More informationQuantity required : 1 |
||||||
|
3 |
AP9100494 - RACCORDO INNESTO RAPIDO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/4/1/5/img/97415.jpg)
4 |
CLAMP CLIC (14. 5X8) OEM PIAGGIO COMMON A LA RANGE-AP9100714 More informationQuantity required : 2 |
||||||
|
5 |
AP9101008-KIT GUARNIZIONI More informationQuantity required : 1 |
||||||
|
6 |
AP9101009-KIT VITI FISSAGGIO More informationQuantity required : 1 |
||||||
|
7 |
AP9101010 - POTENZIOMETRO More informationQuantity required : 1 |
||||||
|
8 |
AP9101011 - INIETTORE More informationQuantity required : 2 |
||||||
|
9 |
855948-FUEL HOSE More informationQuantity required : 1 |
||||||
|
9 |
AP9101012-FUEL RAIL CPL More informationQuantity required : 1 |
||||||
|
10 |
AP9101013-CABLE REGOLAZIONE MINIMO More informationQuantity required : 1 |
||||||
|
11 |
AP9101014-KIT VITI, FASCETTE, CLIP More informationQuantity required : 1 |
||||||
|
12 |
855490 - CABLE STARTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/5/img/71395.jpg)
13 |
HOSE CLAMP NYLON TYPE RILSAN 2, 5X99MM OEM PIAGGIO COMMON A LA RANGE-AP8120422 More informationQuantity required : 2 |
||||||
|
14 |
860593 - MANCHON More informationQuantity required : 1 |
||||||
|
15 |
855929 - MANCHON More informationQuantity required : 1 |
||||||
|
16 |
855930 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/9/img/72889.jpg)
17 |
HOSE CLAMP HOSE (6X9) OEM PIAGGIO COMMON A LA RANGE-CM002902 More informationQuantity required : 1 |
||||||
|
18 |
833658-FITTING More informationQuantity required : 1 |
||||||
|
19 |
855236 - TUYAU CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/1/img/72891.jpg)
20 |
HOSE CLAMP HOSE (8X11) OEM PIAGGIO COMMON A LA RANGE-CM002904 More informationQuantity required : 1 |
