Vehicle Exploded View - APRILIA SXV 550 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

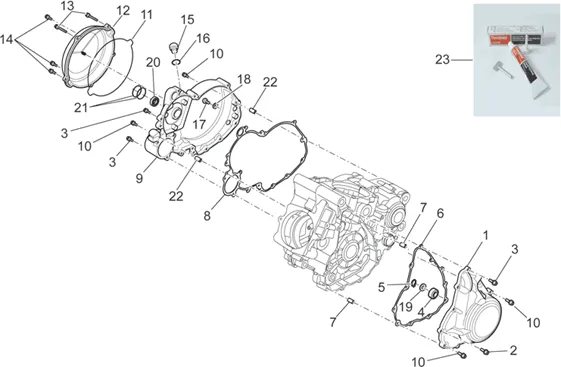

Moteur : 29.36 CARTER MOTEUR II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/642/SXV_550_2008_29.36.PNG)
1 |
AP9150152 - COPERCHIO ACCENSIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
2 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
3 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/9/4/img/69694.jpg)
4 |
OIL SEAL (12X22X6) OF PUMP A WATER OEM PIAGGIO APRILIA 1200 CAPONORD, DORSODURO, 450-550 RXV, RSV-855031 More informationQuantity required : 1 |
||||||
|
5 |
AP9150524-ANELLO ELAST. PER FORI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/6/8/0/img/97680.jpg)
6 |
GASKET COVER IGNITION OEM PIAGGIO 450-500 RXV, SXV-AP9150153 More informationQuantity required : 1 |
||||||
|
7 |
AP9150118 - BUSSOLA DI RIFERIMENTO More informationQuantity required : 2 |
||||||
|
8 |
GASKET CASING ENGINE CENTRAL OEM APRILIA RXV 450-550-AP9150148 More informationQuantity required : 1 |
||||||
|
9 |
851019 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
10 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8152282 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/6/7/7/img/97677.jpg)
11 |
AP9150150 - O-RING 171.13X2.62 More informationQuantity required : 1 |
||||||
|
12 |
AP9150094-COVER FRIZIONE More informationQuantity required : 1 |
||||||
|
13 |
AP9150395-SCREW TEF M6X1-L60 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
14 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 3 |
||||||
|
15 |
CAP REMPLISSAGE OIL OEM APRILIA 900-1200 CAPONORD, DORSODURO, SHIVER-AP9150410 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/9/5/0/img/61950.jpg)
16 |
O-RING (18. 72X2. 62) OEM PIAGGIO COMMON A LA RANGE-AP9150356 More informationQuantity required : 1 |
||||||
|
17 |
AP9150473-SCREW TBEI M6X10 More informationQuantity required : 1 |
||||||
|
18 |
AP9150351-ROSETTA D6-D12-SP1 More informationQuantity required : 1 |
||||||
|
19 |
AP9150522 - SCODELLINO PARAOLIO More informationQuantity required : 1 |
||||||
|
20 |
851010-BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/4/6/1/img/37461.jpg)
21 |
851012 - BAGUE 20X1 More informationQuantity required : 2 |
||||||
|
22 |
851017-BUSH More informationQuantity required : 2 |
||||||
|
23 |
855252 - PATE A SCELLER More informationQuantity required : 1 |
