Vehicle Exploded View - APRILIA SX 125 + 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

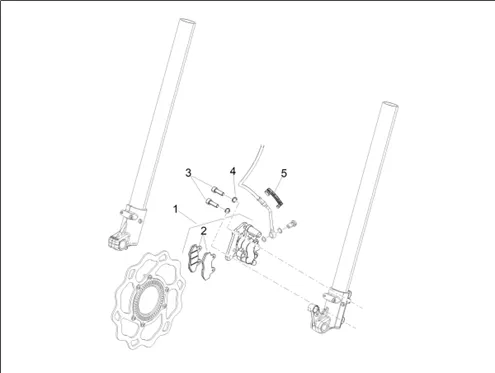

Système de freinage : 06.02 PINCE FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1313/SX_125_2025_(EMEA)_06.02.png)
1 |
2R000488-BRAKE CALIPER FRONT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/5/2/8/img/154528.jpg)
2 |
PLATE BRAKE FRONT OEM PIAGGIO 125 RX, SX APRILIA 2018 >-2R000503 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/0/1/7/img/174017.jpg)
3 |
SCREW BTR (8X25) OEM PIAGGIO COMMON A LA RANGE-271596 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
4 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 2 |
||||||
|
5 |
2B004522-GUIDE-CABLE More informationQuantity required : 1 |
