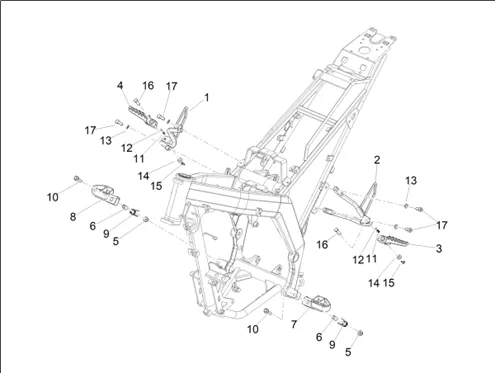

Châssis/coque : 01.02 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1313/SX_125_2025_(EMEA)_01.02.png)
1 |
2B004605-BRACKET R-P. PASS. More informationQuantity required : 1 |
||||||
|
2 |
2B004606-BRACKET R-P. G PASS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/9/7/img/71797.jpg)
3 |
PASSENGER FOOTREST LEFT OEM PIAGGIO APRILIA 50-125 RS, TUONO, 125 MX, RX, FUTURA, MOJITO-AP8146865 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/9/6/img/71796.jpg)
4 |
PASSENGER FOOTREST RIGHT OEM PIAGGIO APRILIA 50-125 RS, TUONO, 125 MX, RX, FUTURA, MOJITO-AP8146864 More informationQuantity required : 1 |
||||||
|
5 |
2R000441-NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/2/8/img/63628.jpg)
6 |
BUSH ARTICULATION OF REST FOOT OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR/APRILIA 50 RX, SX-00002215152 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/4/1/0/img/154410.jpg)
7 |
FOOTREST PILOTE LEFT OEM PIAGGIO 125 RX/SX APRILIA 2018 >-86449401WNA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/4/1/1/img/154411.jpg)
8 |
FOOTREST PILOTE RIGHT OEM PIAGGIO 125 RX/SX APRILIA 2018 >-86449301WNA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/5/4/img/64954.jpg)
9 |
SPRING FOOTREST PILOTE 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX 2006 >-00H04903292 More informationQuantity required : 2 |
||||||
|
10 |
2R000436-SCREW M8 - 40 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
11 |
SPRING DE MAINTIEN FOOTREST OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121133 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/1/9/5/3/img/181953.JPG)
12 |
BILLE (6) OEM PIAGGIO COMMON A LA RANGE-2955916 More informationQuantity required : 2 |
||||||
|
13 |
2R000419-WASHER # 8. 4 - # 16 - 1. 6 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/4/0/img/63640.jpg)
14 |
WASHER RUBBER (7. 5X14X3) OEM PIAGGIO COMMON A LA RANGE-00003515370 More informationQuantity required : 2 |
||||||
|
15 |
AP8101928-GOUPILLE More informationQuantity required : 2 |
||||||
|
16 |
1C007811-PIVOT More informationQuantity required : 2 |
||||||
|
17 |
2R000484-SCREW M8 X 17 More informationQuantity required : 4 |
