Vehicle Exploded View - GILERA STALKER 50 Special Edition 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

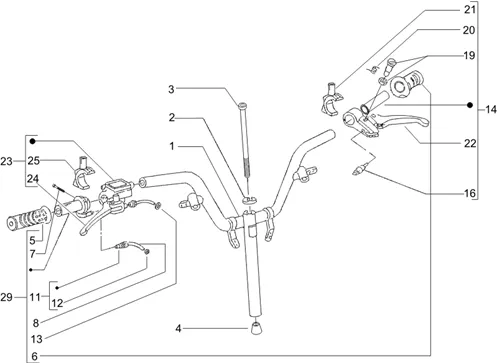

Guidon/direction : 03.06 GUIDON - MAÎTRE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/154/Stalker_Special_Edition_2007-2008_03.06.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/7/4/0/img/79740.jpg)
1 |
HANDLEBAR "PIAGGIO GENUINE PART" GILERA 50 STALKER -5608964 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/9/0/5/img/79905.jpg)
2 |
WASHER EXPANDEUR STEERING OEM PIAGGIO 50 ZIP-563327 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/9/0/6/img/79906.jpg)
3 |
563332 - TIRANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/5/1/7/img/81517.jpg)
4 |
CONE - FOR HANDLEBAR TIGHTENING PIAGGIO 50 ZIP 1998>2003/GILERA 50 STALKER -581182 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/7/8/8/img/79788.jpg)
5 |
RIGHT HAND GRIP "PIAGGIO GENUINE PART" GILERA 50 STALKER -561529- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/7/8/9/img/79789.jpg)
6 |
GRIP/REVETEMENT LEFT OEM PIAGGIO GILERA 50 STALKER 2011 <-561530 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/8/img/65718.jpg)
7 |
SCREW BTR (6X17) WITH BUSH OEM PIAGGIO COMMON A LA RANGE-123394 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/7/6/3/img/79763.jpg)
8 |
CABLE/CONTROL/TRANSMISSION DE THROTTLE SCOOT OEM PIAGGIO 50 ZIP 2000/GILERA 50 STALKER 1998 > 2011 (COTE GRIP)-561149 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/8/img/66078.jpg)
11 |
TENDEUR/SCREW OF REGLAGE CABLE (6X16) OEM PIAGGIO COMMON A LA RANGE-269145 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/4/img/65474.jpg)
12 |
NUT M6 OEM PIAGGIO COMMON A LA RANGE-020206 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/2/2/img/67022.jpg)
13 |
BUSH GRIP THROTTLE 38, 3X27X1, 2 COMMON A LA RANGE PIAGGIO-6562923 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/1/1/3/img/80113.jpg)
14 |
COMPLETE LEFT HANDLE "PIAGGIO GENUINE PART" GILERA 50 STALKER 1997> -564684- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
16 |
INTERRUPTEUR LAMP STOP OEM PIAGGIO 50 NRG, ZIP, TYPHOON, LIBERTY, 125 X9, VESPA LXV, 250-300 VESPA GTV/APRILIA 50 SR H2O, 125 ATLANTIC, RS, SPORT-CITY/GILERA 50 STALKER-580953 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/8/img/66048.jpg)
19 |
SCREW WITH NUT BRAKE LEVER OEM PIAGGIO COMMON A LA RANGE-265249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/7/img/66067.jpg)
20 |
SPRING DE BRAKE LEVER LEFT OEM PIAGGIO COMMON A LA RANGE WITH BRAKE TAMBOUR-267948 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/7/9/7/img/79797.jpg)
21 |
PONTET MIRROR OEM PIAGGIO GILERA 50 STALKER-561704 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/1/1/2/img/80112.jpg)
22 |
BRAKE LEVER SCOOT OEM PIAGGIO 50 ZIP 2000 >, NRG 2000 >/GILERA 50 STALKER 2005 > LEFT (GRIMECA)-564682 More informationQuantity required : 1 |
||||||
23 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/1/0/img/66910.jpg)
24 |
BRAKE LEVER RIGHT OEM PIAGGIO 50 ZIP 2000 >, TYPHOON 2010 >/GILERA 50 STALKER 2005/APRILIA 50 SR 2010 >, SPORT-CITY 2008 > (HENG-TONG)-497041 More informationQuantity required : 1 |
||||||
|
25 |
PONTET MIRROR OEM PIAGGIO GILERA 50 STALKER-561704 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/7/6/4/img/79764.jpg)
29 |
THROTTLE HANDLE "PIAGGIO GENUINE PART" GILERA 50 STALKER -561150- More informationQuantity required : 1 |
