Vehicle Exploded View - GILERA STALKER 50 Special Edition 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

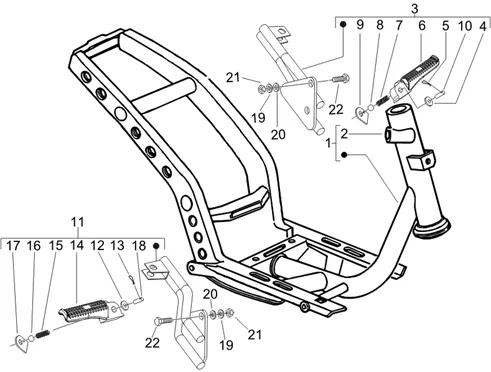

Châssis - parties plastiques - carrosseries : 02.01 CHÂSSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/154/Stalker_Special_Edition_2007-2008_02.01.PNG)
1 |
6206885 - CHASSIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/7/img/66037.jpg)
2 |
BRACKET DE IGNITION SWITCH OEM PIAGGIO 125 VESPA PX 1999 >-259420 More informationQuantity required : 1 |
||||||
|
3 |
573629-BRACKET FOOTREST LEFT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
4 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/5/img/66045.jpg)
5 |
CLIPS/GOUPILLE OEM PIAGGIO COMMON A LA RANGE-259933 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/3/3/8/img/80338.jpg)
6 |
LEFT FOOTREST "PIAGGIO GENUINE PART" GILERA 50 STALKER -574226 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/5/6/1/img/162561.jpg)
7 |
SPRING OF PRESSURE DE BILLE PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-2955909 More informationQuantity required : 1 |
||||||
|
7 |
SPRING OF PRESSURE DE BILLE PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-2955909 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/1/9/5/3/img/181953.JPG)
8 |
BILLE (6) OEM PIAGGIO COMMON A LA RANGE-2955916 More informationQuantity required : 1 |
||||||
|
8 |
BILLE (6) OEM PIAGGIO COMMON A LA RANGE-2955916 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/2/8/7/img/80287.jpg)
9 |
WASHER SPECIALE FRAME OEM PIAGGIO 50 STALKER-573956 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/5/img/66285.jpg)
10 |
ROD PIVOT FOOTREST OEM PIAGGIO 50 NRG, STALKER-295593 More informationQuantity required : 1 |
||||||
|
11 |
573630 - REPOSE PIED D COMPLE More informationQuantity required : 1 |
||||||
|
12 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 1 |
||||||
|
13 |
CLIPS/GOUPILLE OEM PIAGGIO COMMON A LA RANGE-259933 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/3/3/9/img/80339.jpg)
14 |
FOOTREST RIGHT OEM PIAGGIO GILERA 50 STALKER 1998 > 2011-574227 More informationQuantity required : 1 |
||||||
|
15 |
SPRING OF PRESSURE DE BILLE PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-2955909 More informationQuantity required : 1 |
||||||
|
15 |
SPRING OF PRESSURE DE BILLE PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-2955909 More informationQuantity required : 1 |
||||||
|
16 |
BILLE (6) OEM PIAGGIO COMMON A LA RANGE-2955916 More informationQuantity required : 1 |
||||||
|
16 |
BILLE (6) OEM PIAGGIO COMMON A LA RANGE-2955916 More informationQuantity required : 1 |
||||||
|
17 |
WASHER SPECIALE FRAME OEM PIAGGIO 50 STALKER-573956 More informationQuantity required : 1 |
||||||
|
18 |
ROD PIVOT FOOTREST OEM PIAGGIO 50 NRG, STALKER-295593 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
19 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/2/img/68492.jpg)
20 |
WASHER PLATE (8X24X2) OEM PIAGGIO COMMON A LA RANGE-709077 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
21 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/4/img/65644.jpg)
22 |
SCREW TH (8X16) OEM PIAGGIO COMMON A LA RANGE-031116 More informationQuantity required : 2 |
