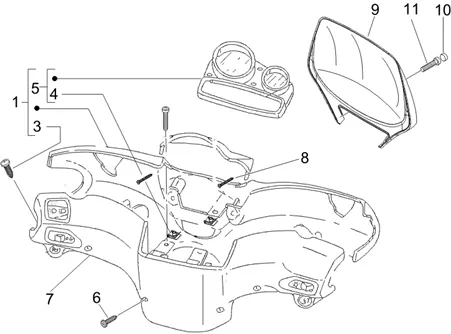

Vehicle Exploded View - GILERA STALKER 50 2007-2008 GILERA

Guidon/direction : 03.01 COUVERTURES GUIDON
Couvertures guidon
Search

1
P2R reference P2R reference
Maker reference Maker reference 62236200NG5

STEERING COVER- FRONT "PIAGGIO GENUINE PART" GILERA 50 STALKER RAW TO BE PAINT -624910-

1
P2R reference P2R reference 85444
Maker reference Maker reference 624910

STEERING COVER- FRONT "PIAGGIO GENUINE PART" GILERA 50 STALKER RAW TO BE PAINT -624910-

More information

Quantity required : 1

62491000NG - COUVRE GUIDON SIMPLE DISQUE

1
P2R reference P2R reference 85457
Maker reference Maker reference 62491000NG

62491000NG - COUVRE GUIDON SIMPLE DISQUE

More information

Quantity required : 1

62491000R7 - COUVRE GUIDON SIMPLE DISQUE

1
P2R reference P2R reference 85459
Maker reference Maker reference 62491000R7

62491000R7 - COUVRE GUIDON SIMPLE DISQUE

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (4X16) OEM PIAGGIO COMMON A LA RANGE-267115

3
P2R reference P2R reference 66058
Maker reference Maker reference 267115

SCREW AUTOTARAUDEUSE (4X16) OEM PIAGGIO COMMON A LA RANGE-267115

More information

Quantity required : 4

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419

4
P2R reference P2R reference 65998
Maker reference Maker reference 248419

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419

More information

Quantity required : 2

SCREW AUTOTARAUDEUSE (L 20 MM) OEM PIAGGIO COMMON A LA RANGE-267958

6
P2R reference P2R reference 66068
Maker reference Maker reference 267958

SCREW AUTOTARAUDEUSE (L 20 MM) OEM PIAGGIO COMMON A LA RANGE-267958

More information

Quantity required : 8

REAR HANDLEBAR COVER "PIAGGIO GENUINE PART" GILERA 50 STALKER -560846000C-

7
P2R reference P2R reference 79738
Maker reference Maker reference 560846000C

REAR HANDLEBAR COVER "PIAGGIO GENUINE PART" GILERA 50 STALKER -560846000C-

More information

Quantity required : 1

SCREW SHEET METAL (L35MM) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-296458

8
P2R reference P2R reference 66293
Maker reference Maker reference 296458

SCREW SHEET METAL (L35MM) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-296458

More information

Quantity required : 8

FRONT FAIRING KIT "PIAGGIO GENUINE PART" GILERA 50 STALKER RAW TO BE PAINT -621759-

9
P2R reference P2R reference 84080
Maker reference Maker reference 621759

FRONT FAIRING KIT "PIAGGIO GENUINE PART" GILERA 50 STALKER RAW TO BE PAINT -621759-

More information

Quantity required : 1

FRONT FAIRING KIT "PIAGGIO GENUINE PART" GILERA 50 STALKER GREY -62175900E1-

9
P2R reference P2R reference 84082
Maker reference Maker reference 62175900E1

PLATE DOOR NUMERO/KIT BULLE OEM PIAGGIO GILERA 50 STALKER GREY-62175900E1

More information

Quantity required : 1

FRONT FAIRING KIT "PIAGGIO GENUINE PART" GILERA 50 STALKER BLACK -62175900NG-

9
P2R reference P2R reference 84084
Maker reference Maker reference 62175900NG

PLATE DOOR NUMERO/KIT BULLE OEM PIAGGIO GILERA 50 STALKER BLACK-62175900NG

More information

Quantity required : 1

CAPSULE MOUNTING SAUTE VENT OEM PIAGGIO COMMON A LA RANGE-230872

10
P2R reference P2R reference 76670
Maker reference Maker reference 230872

CAPSULE MOUNTING SAUTE VENT OEM PIAGGIO COMMON A LA RANGE-230872

More information

Quantity required : 8

SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498

11
P2R reference P2R reference 66301
Maker reference Maker reference 297498

SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498

More information

Quantity required : 8
