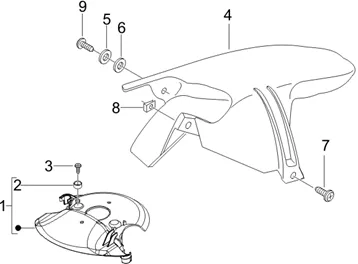

Vehicle Exploded View - GILERA STALKER 50 2007-2008 GILERA

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
Logement roue - Garde boue
Search
FRONT MUDGUARD-INNER CENTRAL "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2005/GILERA 50 STALKER -573321

1
P2R reference P2R reference 80210
Maker reference Maker reference 573321

FRONT MUDGUARD-INNER CENTRAL "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2005/GILERA 50 STALKER -573321

More information

Quantity required : 2

BUSH EN T (D5) MOLETEE CENTRAGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE-830056

2
P2R reference P2R reference 68888
Maker reference Maker reference 830056

BUSH EN T (D5) MOLETEE CENTRAGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE-830056

More information

Quantity required : 4

SCREW - (6x20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830

3
P2R reference P2R reference 66043
Maker reference Maker reference 259830
Replaced by référence Replaced by référence 73367

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830

More information

Quantity required : 4

LECHE WHEEL/REAR MUDGUARD OEM PIAGGIO 50 NRG 1998 > 2005, TYPHOON 1998 > 2009/GILERA 50 STALKER 1998 > 2011, RUNNER 1998 > 2005/APRILIA 50 MOJITO 2004 >-5765344

4
P2R reference P2R reference 67131
Maker reference Maker reference 5765344

LECHE WHEEL/REAR MUDGUARD OEM PIAGGIO 50 NRG 1998 > 2005, TYPHOON 1998 > 2009/GILERA 50 STALKER 1998 > 2011, RUNNER 1998 > 2005/APRILIA 50 MOJITO 2004 >-5765344

More information

Quantity required : 2

WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533

5
P2R reference P2R reference 65345
Maker reference Maker reference 0125335

WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533

More information

Quantity required : 2

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

6
P2R reference P2R reference 65366
Maker reference Maker reference 0138805

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

More information

Quantity required : 2

SCREW CRUCIFORME (6X35) OEM PIAGGIO COMMON A LA RANGE-015804

7
P2R reference P2R reference 65397
Maker reference Maker reference 0158045

SCREW CRUCIFORME (6X35) OEM PIAGGIO COMMON A LA RANGE-015804

More information

Quantity required : 2

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

8
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 4

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

9
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

More information

Quantity required : 2
