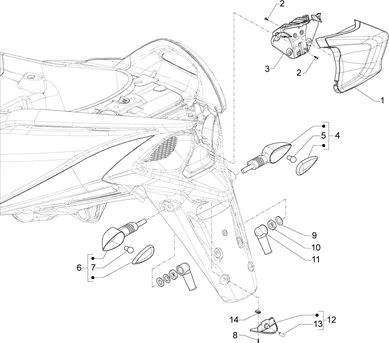

Vehicle Exploded View - APRILIA SRV 850 4T 8V E3 2012-2013 APRILIA

Installation électrique : 06.04 ECLAIRAGES ARRIÈRE - CLIGNOTANTS
Eclairages arrière - Clignotants
Search
643302 - FEU ARRIERE

1
P2R reference P2R reference 38567
Maker reference Maker reference 643302

643302-LAMP REAR

More information

Quantity required : 1

SCREW TORX (4X16) TARAUD FAIRING OEM PIAGGIO COMMON A LA RANGE-CM180701

2
P2R reference P2R reference 73372
Maker reference Maker reference CM180701

SCREW TORX (4X16) TARAUD FAIRING OEM PIAGGIO COMMON A LA RANGE-CM180701

More information

Quantity required : 8

674822 - PLAQUE SUPPORT

3
P2R reference P2R reference 38901
Maker reference Maker reference 674822

674822-PLATE BRACKET

More information

Quantity required : 1

INDICATOR MAXI SCOOTER OEM PIAGGIO 250-300-400-500 MP3 2008 > 2014 FRONT LEFT OU REAR RIGHT-6402445

4
P2R reference P2R reference 67872
Maker reference Maker reference 6402445

INDICATOR MAXI SCOOTER OEM PIAGGIO 250-300-400-500 MP3 2008 > 2014 FRONT LEFT OU REAR RIGHT-6402445

More information

Quantity required : 1

AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332

5
P2R reference P2R reference 67298
Maker reference Maker reference 584332

AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332

More information

Quantity required : 1

INDICATOR MAXI SCOOTER OEM PIAGGIO 250-300-400-500 MP3 2008 > 2014 FRONT RIGHT OU REAR LEFT-6402455

6
P2R reference P2R reference 67873
Maker reference Maker reference 6402455

INDICATOR MAXI SCOOTER OEM PIAGGIO 250-300-400-500 MP3 2008 > 2014 FRONT RIGHT OU REAR LEFT-6402455

More information

Quantity required : 1

AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332

7
P2R reference P2R reference 67298
Maker reference Maker reference 584332

AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332

More information

Quantity required : 1

SCREW PARKER (3. 5X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015859

8
P2R reference P2R reference 65400
Maker reference Maker reference 0158595

SCREW PARKER (3. 5X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015859

More information

Quantity required : 2

WASHER EVENTAIL (10, 5) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-012535

9
P2R reference P2R reference 65346
Maker reference Maker reference 0125355

WASHER EVENTAIL (10, 5) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-012535

More information

Quantity required : 2

675307 - ECROU

10
P2R reference P2R reference 68482
Maker reference Maker reference 675307

675307-NUT

More information

Quantity required : 2

CAPUCHON/PROTECTOR COSSE OEM PIAGGIO COMMON A LA RANGE-581061

11
P2R reference P2R reference 67200
Maker reference Maker reference 581061

CAPUCHON/PROTECTOR COSSE OEM PIAGGIO COMMON A LA RANGE-581061

More information

Quantity required : 2

641355000C - FEU PLAQUE

12
P2R reference P2R reference 67924
Maker reference Maker reference 641355000C

641355000C-LAMP PLATE

More information

Quantity required : 1

AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225

13
P2R reference P2R reference 139408
Maker reference Maker reference 2920225

AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225

More information

Quantity required : 1

NUT SHEET METAL (3. 5 PARKER) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM017403

14
P2R reference P2R reference 72921
Maker reference Maker reference CM017403

NUT SHEET METAL (3. 5 PARKER) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM017403

More information

Quantity required : 2
