Vehicle Exploded View - APRILIA SRV 850 4T 8V E3 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

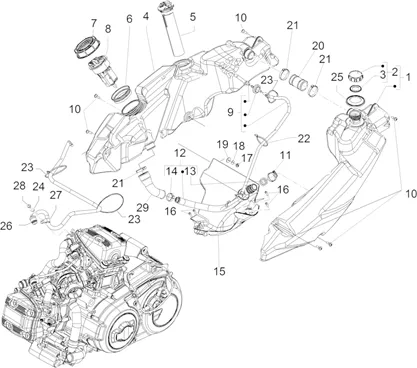

Châssis - parties plastiques - carrosseries : 02.47 RÉSERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/581/SRV_850_4T_8V_E3_2012-2013_02.47.PNG)
1 |
FUEL TANK (LEFT) "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV -674797- More informationQuantity required : 1 |
||||||
|
2 |
674839-CAP FUEL TANK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/0/7/img/68307.jpg)
3 |
GASKET CAP DE TANK OEM PIAGGIO COMMON A LA RANGE-656021 More informationQuantity required : 1 |
||||||
|
4 |
FUEL TANK RIGHT OEM PIAGGIO GILERA 800 GP/APRILIA 850 SRV-674798 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/4/9/img/72949.jpg)
5 |
FUEL LEVEL GAUGE "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV -CM025712- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/8/1/img/127181.jpg)
6 |
GASKET OF JAUGE A FUEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-656003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/3/img/67133.jpg)
7 |
NUT/BUSH PUMP OEM PIAGGIO COMMON A LA RANGE-576546 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/1/9/img/67919.jpg)
8 |
PUMP D'ESSENCE OEM PIAGGIO GILERA 800 GP/APRILIA 850 SRV-641251 More informationQuantity required : 1 |
||||||
|
9 |
675320-TUBE D'EVENT COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
10 |
SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201 More informationQuantity required : 6 |
||||||
|
11 |
654184-CLAMP More informationQuantity required : 1 |
||||||
|
12 |
675891-TUBE TANK More informationQuantity required : 1 |
||||||
|
13 |
654479-GASKET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/9/img/72869.jpg)
14 |
CLAMP HOSE COOLING (30. 8 MM) OEM PIAGGIO COMMON A LA RANGE-CM001908 More informationQuantity required : 1 |
||||||
|
15 |
654477-PROTECTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
16 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 4 |
||||||
|
17 |
959614-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/4/img/65664.jpg)
18 |
WASHER SPRING (6, 4X16X1) OEM PIAGGIO COMMON A LA RANGE-078307 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/6/img/66296.jpg)
19 |
WASHER PLATE (6X20) OEM PIAGGIO COMMUNU A LA RANGE-297029 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/4/4/img/68344.jpg)
20 |
656875-HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/2/img/72882.jpg)
21 |
CLAMP OEM GILLERA 800 GP 2007 > 2011-CM001923 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
22 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
23 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 3 |
||||||
|
24 |
ECROU |
||||||
|
25 |
622235-CUVETTE More informationQuantity required : 1 |
||||||
|
26 |
655789 - TUYAU REFOULEMENT POUR CARBURATEUR More informationQuantity required : 1 |
||||||
|
27 |
675510-CLAMP More informationQuantity required : 2 |
||||||
|
28 |
018509-SCREW More informationQuantity required : 2 |
||||||
|
29 |
675891-TUBE TANK More informationQuantity required : 1 |
